NIO服务器（七）之Netty3实现

本文基于 Dubbo 2.6.1 版本，望知悉。

1. 概述

本文接《精尽 Dubbo 源码分析 —— NIO 服务器（六）之 Netty4 实现》一文，分享在 dubbo-remoting-netty 中，Netty3 如何接入实现。

因为 Netty3 的接入代码，和 Netty4 基本是一致，主要是一些 Netty 不同版本的 API 差异，所以本文，会相对简介，只重点分享一些差异的地方。

涉及如下类：

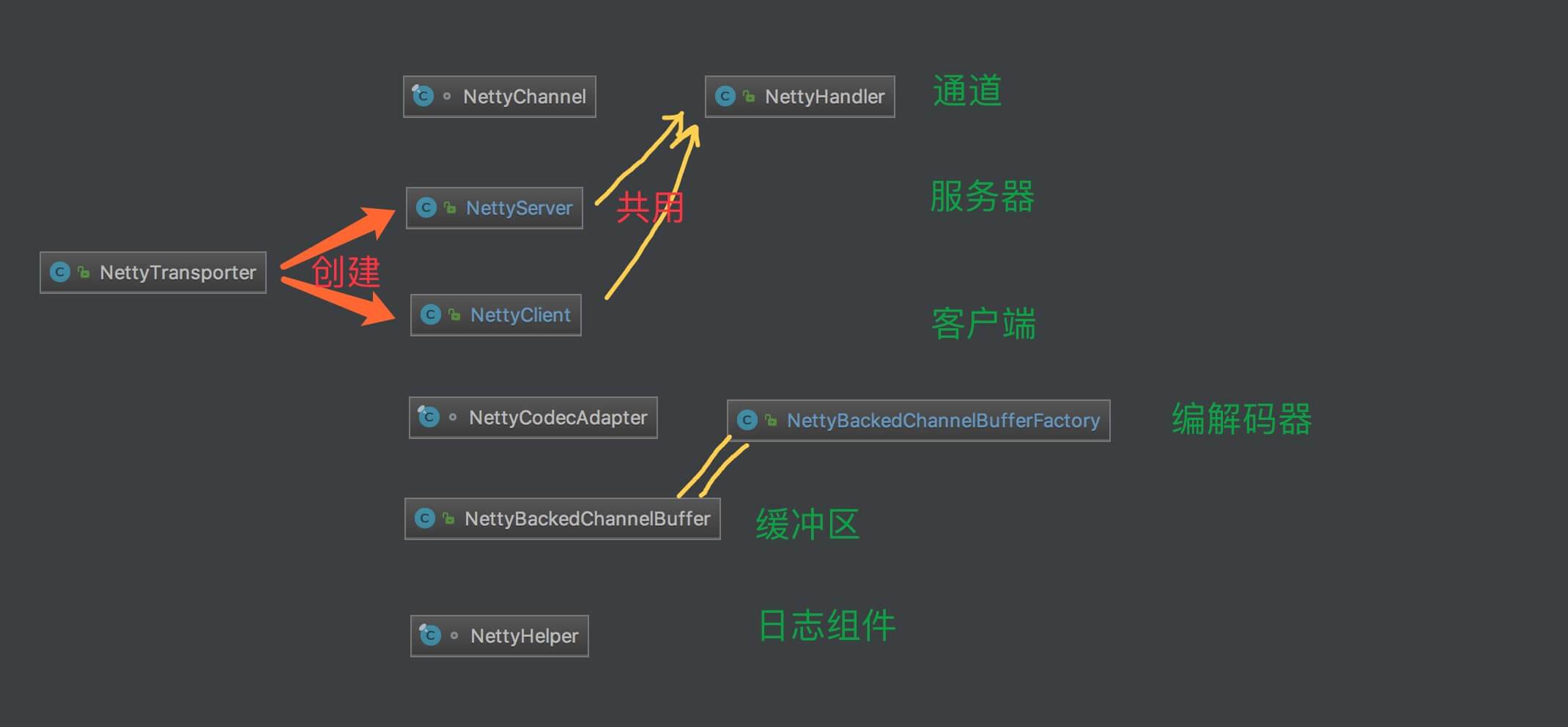

类图

友情提示：在当前版本，默认情况下，使用 Netty3 ，如果想配置成 Netty4 ，请参考文档：《Dubbo 用户指南 —— Netty4》

2. NettyTransporter

com.alibaba.dubbo.remoting.transport.netty.NettyTransporter ，和 dubbo-remoting-netty4 一致，省略。

3. NettyChannel

com.alibaba.dubbo.remoting.transport.netty.NettyChannel ，和 dubbo-remoting-netty4 一致，省略。

4. NettyHandler

com.alibaba.dubbo.remoting.transport.netty.NettyHandler ，实现 io.netty.channel.ChannelDuplexHandler 类，NettyServer 和 NettyClient 的处理器，统一使用。这一点，不同于 dubbo-remoting-netty4 ，服务端和服务器使用不同的两个处理器。相比来说，dubbo-remoting-netty4 控制更精细，影响不大。

当然也有一个原因，Dubbo ChannelHandler 基于 Netty3 的 SimpleChannelHandler 为设计原型。因此，在 dubbo-remoting-netty4 中，需要将 DubboHandler 的方法，适配到 Netty4 的 ChannelDuplexHandler 的方法。

NettyHandler 和 HeaderExchangeHandler 类似。

构造方法

```plain text plain @Sharable public class NettyHandler extends SimpleChannelHandler { /** * Dubbo Channel 集合 */ private final Map<String, Channel> channels = new ConcurrentHashMap<String, Channel>(); // <ip:port, channel> /** * URL */ private final URL url; /** * Dubbo ChannelHandler */ private final ChannelHandler handler; public NettyHandler(URL url, ChannelHandler handler) { if (url == null) { throw new IllegalArgumentException(“url == null”); } if (handler == null) { throw new IllegalArgumentException(“handler == null”); } this.url = url; this.handler = handler; } // … 省略实现方法 }

---

**实现方法**

每个实现的方法，调用 handler 对应的方法。以 #channelActive(ChannelHandlerContext) 方法举例子，代码如下：

```plain text
plain @Override public void channelConnected(ChannelHandlerContext ctx, ChannelStateEvent e) throws Exception {     // 创建 NettyChannel 对象     NettyChannel channel = NettyChannel.getOrAddChannel(ctx.getChannel(), url, handler);     try {         // 添加到 `channels` 中         if (channel != null) {             channels.put(NetUtils.toAddressString((InetSocketAddress) ctx.getChannel().getRemoteAddress()), channel);         }         // 提交给 `handler` 处理器。         handler.connected(channel);     } finally {         // 移除 NettyChannel 对象，若已断开         NettyChannel.removeChannelIfDisconnected(ctx.getChannel());     } }

其他方法，胖友自己查看。

5. NettyServer

com.alibaba.dubbo.remoting.transport.netty.NettyServer ，实现 Server 接口，继承 AbstractServer 抽象类，Netty 服务器实现类。

构造方法

```plain text plain /** * 通道集合 */ private Map<String, Channel> channels; // <ip:port, channel> private ServerBootstrap bootstrap; private org.jboss.netty.channel.Channel channel; public NettyServer(URL url, ChannelHandler handler) throws RemotingException { super(url, ChannelHandlers.wrap(handler, ExecutorUtil.setThreadName(url, SERVER_THREAD_POOL_NAME))); }

---

- 和
dubbo-remoting-netty4
基本一致。

**启动服务器**

```plain text
plain 1: @Override  2: protected void doOpen() {  3:     // 设置日志工厂  4:     NettyHelper.setNettyLoggerFactory();  5:   6:     // 创建线程池  7:     ExecutorService boss = Executors.newCachedThreadPool(new NamedThreadFactory("NettyServerBoss", true));  8:     ExecutorService worker = Executors.newCachedThreadPool(new NamedThreadFactory("NettyServerWorker", true));  9:  10:     // 创建 ChannelFactory 对象 11:     ChannelFactory channelFactory = new NioServerSocketChannelFactory(boss, worker, getUrl().getPositiveParameter(Constants.IO_THREADS_KEY, Constants.DEFAULT_IO_THREADS)); 12:     // 实例化 ServerBootstrap 13:     bootstrap = new ServerBootstrap(channelFactory); 14:  15:     // 创建 NettyHandler 对象 16:     final NettyHandler nettyHandler = new NettyHandler(getUrl(), this); 17:     // 设置 `channels` 属性 18:     channels = nettyHandler.getChannels(); 19:     // https://issues.jboss.org/browse/NETTY-365 20:     // https://issues.jboss.org/browse/NETTY-379 21:     // final Timer timer = new HashedWheelTimer(new NamedThreadFactory("NettyIdleTimer", true)); 22:     bootstrap.setPipelineFactory(new ChannelPipelineFactory() { 23:         @Override 24:         public ChannelPipeline getPipeline() { 25:             // 创建 NettyCodecAdapter 对象 26:             NettyCodecAdapter adapter = new NettyCodecAdapter(getCodec(), getUrl(), NettyServer.this); 27:             ChannelPipeline pipeline = Channels.pipeline(); 28:             /*int idleTimeout = getIdleTimeout(); 29:             if (idleTimeout > 10000) { 30:                 pipeline.addLast("timer", new IdleStateHandler(timer, idleTimeout / 1000, 0, 0)); 31:             }*/ 32:             pipeline.addLast("decoder", adapter.getDecoder()); // 解码 33:             pipeline.addLast("encoder", adapter.getEncoder()); // 解码 34:             pipeline.addLast("handler", nettyHandler); // 处理器 35:             return pipeline; 36:         } 37:     }); 38:     // 服务器绑定端口监听 39:     // bind 40:     channel = bootstrap.bind(getBindAddress()); 41: }

和 dubbo-remoting-netty4 基本一致，下面只说一些差异的地方。
第 6 至 8 行：创建线程池，不同于 dubbo-remoting-netty4 中，创建线程组 NioEventLoopGroup 。
第 11 行：基于 boss worker ，创建 ChannelFactory 对象。
并未设置 ServerBootstrap 的可选项。

关闭服务器

```plain text plain 1: @Override 2: protected void doClose() { 3: // 关闭服务器通道 4: try { 5: if (channel != null) { 6: // unbind. 7: channel.close(); 8: } 9: } catch (Throwable e) { 10: logger.warn(e.getMessage(), e); 11: } 12: // 关闭连接到服务器的客户端通道 13: try { 14: Collection channels = getChannels(); 15: if (channels != null && !channels.isEmpty()) { 16: for (com.alibaba.dubbo.remoting.Channel channel : channels) { 17: try { 18: channel.close(); 19: } catch (Throwable e) { 20: logger.warn(e.getMessage(), e); 21: } 22: } 23: } 24: } catch (Throwable e) { 25: logger.warn(e.getMessage(), e); 26: } 27: // 优雅关闭 ServerBootstrap 28: try { 29: if (bootstrap != null) { 30: // release external resource. 31: bootstrap.releaseExternalResources(); 32: } 33: } catch (Throwable e) { 34: logger.warn(e.getMessage(), e); 35: } 36: // 清空连接到服务器的客户端通道 37: try { 38: if (channels != null) { 39: channels.clear(); 40: } 41: } catch (Throwable e) { 42: logger.warn(e.getMessage(), e); 43: } 44: }

---

- 和
dubbo-remoting-netty4
基本一致，下面只说一些差异的地方。
- 第 27 至 35 行：调用
Bootstrap#releaseExternalResources()
方法，释放 ServerBootstrap 相关的资源。

# 6. NettyClient

[com.alibaba.dubbo.remoting.transport.netty.NettyClient](https://github.com/YunaiV/dubbo/blob/master/dubbo-remoting/dubbo-remoting-netty/src/main/java/com/alibaba/dubbo/remoting/transport/netty/NettyClient.java) ，继承 AbstractNettyClient 抽象类，Netty 客户端实现类。

**构造方法**

```plain text
plain // ChannelFactory's closure has a DirectMemory leak, using static to avoid // https://issues.jboss.org/browse/NETTY-424 private static final ChannelFactory channelFactory = new NioClientSocketChannelFactory(Executors.newCachedThreadPool(new NamedThreadFactory("NettyClientBoss", true)),         Executors.newCachedThreadPool(new NamedThreadFactory("NettyClientWorker", true)),         Constants.DEFAULT_IO_THREADS);  private ClientBootstrap bootstrap;  private volatile org.jboss.netty.channel.Channel channel; // volatile, please copy reference to use  public NettyClient(final URL url, final ChannelHandler handler) throws RemotingException {     super(url, wrapChannelHandler(url, handler)); }

channelFactory 属性，【TODO 8027】为啥公用

启动客户端

```plain text plain 1: @Override 2: protected void doOpen() { 3: // 设置日志工厂 4: NettyHelper.setNettyLoggerFactory(); 5: 6: // 实例化 ServerBootstrap 7: bootstrap = new ClientBootstrap(channelFactory); 8: // 设置可选项 9: // config 10: // @see org.jboss.netty.channel.socket.SocketChannelConfig 11: bootstrap.setOption(“keepAlive”, true); 12: bootstrap.setOption(“tcpNoDelay”, true); 13: bootstrap.setOption(“connectTimeoutMillis”, getTimeout()); 14: 15: // 创建 NettyHandler 对象 16: final NettyHandler nettyHandler = new NettyHandler(getUrl(), this); 17: 18: // 设置责任链路 19: bootstrap.setPipelineFactory(new ChannelPipelineFactory() { 20: public ChannelPipeline getPipeline() { 21: // 创建 NettyCodecAdapter 对象 22: NettyCodecAdapter adapter = new NettyCodecAdapter(getCodec(), getUrl(), NettyClient.this); 23: ChannelPipeline pipeline = Channels.pipeline(); 24: pipeline.addLast(“decoder”, adapter.getDecoder()); // 解码 25: pipeline.addLast(“encoder”, adapter.getEncoder()); // 编码 26: pipeline.addLast(“handler”, nettyHandler); // 处理器 27: return pipeline; 28: } 29: }); 30: }

---

- 和
dubbo-remoting-netty4
基本一致。

**连接服务器**

```plain text
plain 1: @Override  2: protected void doConnect() throws Throwable {  3:     long start = System.currentTimeMillis();  4:     // 连接服务器  5:     ChannelFuture future = bootstrap.connect(getConnectAddress());  6:     try {  7:         // 等待连接成功或者超时  8:         boolean ret = future.awaitUninterruptibly(getConnectTimeout(), TimeUnit.MILLISECONDS);  9:         // 连接成功 10:         if (ret && future.isSuccess()) { 11:             Channel newChannel = future.getChannel(); 12:             newChannel.setInterestOps(Channel.OP_READ_WRITE); 13:             try { 14:                 // 关闭老的连接 15:                 // Close old channel 16:                 Channel oldChannel = NettyClient.this.channel; // copy reference 17:                 if (oldChannel != null) { 18:                     try { 19:                         if (logger.isInfoEnabled()) { 20:                             logger.info("Close old netty channel " + oldChannel + " on create new netty channel " + newChannel); 21:                         } 22:                         oldChannel.close(); 23:                     } finally { 24:                         NettyChannel.removeChannelIfDisconnected(oldChannel); 25:                     } 26:                 } 27:             } finally { 28:                 // 若 NettyClient 被关闭，关闭连接 29:                 if (NettyClient.this.isClosed()) { 30:                     try { 31:                         if (logger.isInfoEnabled()) { 32:                             logger.info("Close new netty channel " + newChannel + ", because the client closed."); 33:                         } 34:                         newChannel.close(); 35:                     } finally { 36:                         NettyClient.this.channel = null; 37:                         NettyChannel.removeChannelIfDisconnected(newChannel); 38:                     } 39:                 // 设置新连接 40:                 } else { 41:                     NettyClient.this.channel = newChannel; 42:                 } 43:             } 44:         // 发生异常，抛出 RemotingException 异常 45:         } else if (future.getCause() != null) { 46:             throw new RemotingException(this, "client(url: " + getUrl() + ") failed to connect to server " 47:                     + getRemoteAddress() + ", error message is:" + future.getCause().getMessage(), future.getCause()); 48:         // 无结果（连接超时），抛出 RemotingException 异常 49:         } else { 50:             throw new RemotingException(this, "client(url: " + getUrl() + ") failed to connect to server " 51:                     + getRemoteAddress() + " client-side timeout " 52:                     + getConnectTimeout() + "ms (elapsed: " + (System.currentTimeMillis() - start) + "ms) from netty client " 53:                     + NetUtils.getLocalHost() + " using dubbo version " + Version.getVersion()); 54:         } 55:     } finally { 56:         // 未连接，取消任务 57:         if (!isConnected()) { 58:             future.cancel(); 59:         } 60:     } 61: }

和 dubbo-remoting-netty4 基本一致，下面只说一些差异的地方。
第 9 行：调用 ChannelFuture#awaitUninterruptibly(timeout, TimeUnit) 方法，等待连接成功或超时。这里传入的不是 3000 。
第 55 至 60 行：最终结果为未连接，调用 ChannelFuture#cancel(true) 方法，取消任务。

关闭连接

```plain text plain @Override protected void doClose() throws Throwable { /try { bootstrap.releaseExternalResources(); } catch (Throwable t) { logger.warn(t.getMessage()); }/ }

---

- 因为 **静态**
channelFactory
是
属性，被多个 NettyClient 共用。

# 7. Buffer

## 7.1 NettyBackedChannelBuffer

[com.alibaba.dubbo.remoting.transport.netty.NettyBackedChannelBuffer](https://github.com/YunaiV/dubbo/blob/master/dubbo-remoting/dubbo-remoting-netty/src/main/java/com/alibaba/dubbo/remoting/transport/netty/NettyBackedChannelBuffer.java) ，实现 ChannelBuffer 接口，基于 **Netty3 ChannelBuffer** 的 ChannelBuffer 实现类。

**构造方法**

```plain text
plain private org.jboss.netty.buffer.ChannelBuffer buffer;  public NettyBackedChannelBuffer(org.jboss.netty.buffer.ChannelBuffer buffer) {     Assert.notNull(buffer, "buffer == null");     this.buffer = buffer; }

工厂

```plain text plain @Override public ChannelBufferFactory factory() { return NettyBackedChannelBufferFactory.getInstance(); }

---

- 对应的工厂是 NettyBackedChannelBufferFactory

**实现方法**

每个方法，直接调用 Netty3 ChannelBuffer 对应的方法。

## 7.2 NettyBackedChannelBufferFactory

[com.alibaba.dubbo.remoting.transport.netty.NettyBackedChannelBufferFactory](https://github.com/YunaiV/dubbo/blob/master/dubbo-remoting/dubbo-remoting-netty/src/main/java/com/alibaba/dubbo/remoting/transport/netty/NettyBackedChannelBufferFactory.java) ，实现 ChannelBufferFactory 接口，创建 NettyBackedChannelBuffer 的工厂。代码如下：

```plain text
plain @Override public ChannelBuffer getBuffer(int capacity) {     return new NettyBackedChannelBuffer(ChannelBuffers.dynamicBuffer(capacity)); // ChannelBuffers 为 `org.jboss.netty.buffer` 包下 }  @Override public ChannelBuffer getBuffer(byte[] array, int offset, int length) {     // 创建 Netty3 ChannelBuffer 对象     org.jboss.netty.buffer.ChannelBuffer buffer = ChannelBuffers.dynamicBuffer(length); // ChannelBuffers 为 `org.jboss.netty.buffer` 包下     // 写入数据     buffer.writeBytes(array, offset, length);     // 创建 NettyBackedChannelBuffer 对象     return new NettyBackedChannelBuffer(buffer); }  @Override public ChannelBuffer getBuffer(ByteBuffer nioBuffer) {     return new NettyBackedChannelBuffer(ChannelBuffers.wrappedBuffer(nioBuffer)); // ChannelBuffers 为 `org.jboss.netty.buffer` 包下 }

注意，此处的 ChannelBuffers 是 org.jboss.netty.buffer 包下的。

8. NettyCodecAdapter

com.alibaba.dubbo.remoting.transport.netty.NettyCodecAdapter ，Netty 编解码适配器，将 Dubbo 编解码器 适配成 Netty3 的编码器和解码器。

构造方法

```plain text plain /** * Netty 编码器 */ private final ChannelHandler encoder = new InternalEncoder(); /** * Netty 解码器 */ private final ChannelHandler decoder = new InternalDecoder(); /** * Dubbo 编解码器 */ private final Codec2 codec; /** * Dubbo URL */ private final URL url; /** * 网络读写缓冲区大小 */ private final int bufferSize; /** * Dubbo ChannelHandler */ private final com.alibaba.dubbo.remoting.ChannelHandler handler; public NettyCodecAdapter(Codec2 codec, URL url, com.alibaba.dubbo.remoting.ChannelHandler handler) { this.codec = codec; this.url = url; this.handler = handler; // 设置 bufferSize int b = url.getPositiveParameter(Constants.BUFFER_KEY, Constants.DEFAULT_BUFFER_SIZE); this.bufferSize = b >= Constants.MIN_BUFFER_SIZE && b <= Constants.MAX_BUFFER_SIZE ? b : Constants.DEFAULT_BUFFER_SIZE; }

---

- bufferSize**不需要**[「8.2 InternalDecoder」](http://svip.iocoder.cn/Dubbo/remoting-impl-netty3/#)
属性，网络读写缓冲区大小，默认 8K 。这是
dubbo-remoting-netty4
的 NettyCodecAdapter 所
的。用于下面
，消息解码时使用。

## 8.1 InternalEncoder

```plain text
plain @Sharable private class InternalEncoder extends OneToOneEncoder {      @Override     protected Object encode(ChannelHandlerContext ctx, Channel ch, Object msg) throws Exception {         // 创建 HeapChannelBuffer 对象         com.alibaba.dubbo.remoting.buffer.ChannelBuffer buffer = com.alibaba.dubbo.remoting.buffer.ChannelBuffers.dynamicBuffer(1024);         // 获得 NettyChannel 对象         NettyChannel channel = NettyChannel.getOrAddChannel(ch, url, handler);         try {             // 编码             codec.encode(channel, buffer, msg);         } finally {             // 移除 NettyChannel 对象，若断开连接             NettyChannel.removeChannelIfDisconnected(ch);         }         // 返回 Netty ChannelBuffer 对象         return ChannelBuffers.wrappedBuffer(buffer.toByteBuffer());     }  }

org.jboss.netty.handler.codec.oneone.OneToOneEncoder抽象类，Netty3 编码器。
代码比较简单，胖友自己看注释。

8.2 InternalDecoder

plain text plain 1: private class InternalDecoder extends SimpleChannelUpstreamHandler { 2: 3: /** 4: * 未读完的消息 Buffer 5: */ 6: private com.alibaba.dubbo.remoting.buffer.ChannelBuffer buffer = com.alibaba.dubbo.remoting.buffer.ChannelBuffers.EMPTY_BUFFER; 7: 8: @Override 9: public void messageReceived(ChannelHandlerContext ctx, MessageEvent event) throws Exception { 10: // 跳过非 ChannelBuffer 11: Object o = event.getMessage(); 12: if (!(o instanceof ChannelBuffer)) { 13: ctx.sendUpstream(event); 14: return; 15: } 16: 17: // 无可读，跳过 18: ChannelBuffer input = (ChannelBuffer) o; 19: int readable = input.readableBytes(); 20: if (readable <= 0) { 21: return; 22: } 23: 24: // 合并 `buffer` + `input` 成 `message` 25: com.alibaba.dubbo.remoting.buffer.ChannelBuffer message; 26: if (buffer.readable()) { // 有未读完的，需要拼接 27: if (buffer instanceof DynamicChannelBuffer) { 28: buffer.writeBytes(input.toByteBuffer()); 29: message = buffer; 30: } else { // Netty3 ChannelBuffer ，转成 DynamicChannelBuffer 。 31: int size = buffer.readableBytes() + input.readableBytes(); 32: message = com.alibaba.dubbo.remoting.buffer.ChannelBuffers.dynamicBuffer(size > bufferSize ? size : bufferSize); 33: message.writeBytes(buffer, buffer.readableBytes()); 34: message.writeBytes(input.toByteBuffer()); 35: } 36: } else { // 无未读完的，直接创建 37: message = com.alibaba.dubbo.remoting.buffer.ChannelBuffers.wrappedBuffer(input.toByteBuffer()); 38: } 39: 40: // 获得 NettyChannel 对象 41: NettyChannel channel = NettyChannel.getOrAddChannel(ctx.getChannel(), url, handler); 42: // 循环解析，直到结束 43: Object msg; 44: int saveReaderIndex; 45: try { 46: // decode object. 47: do { 48: saveReaderIndex = message.readerIndex(); 49: try { 50: msg = codec.decode(channel, message); 51: } catch (IOException e) { 52: buffer = com.alibaba.dubbo.remoting.buffer.ChannelBuffers.EMPTY_BUFFER; 53: throw e; 54: } 55: if (msg == Codec2.DecodeResult.NEED_MORE_INPUT) { 56: message.readerIndex(saveReaderIndex); 57: break; 58: // 解码到消息，触发一条消息 59: } else { 60: //is it possible to go here ? 芋艿：不可能，哈哈哈 61: if (saveReaderIndex == message.readerIndex()) { 62: buffer = com.alibaba.dubbo.remoting.buffer.ChannelBuffers.EMPTY_BUFFER; 63: throw new IOException("Decode without read data."); 64: } 65: if (msg != null) { 66: Channels.fireMessageReceived(ctx, msg, event.getRemoteAddress()); 67: } 68: } 69: } while (message.readable()); 70: } finally { 71: // 有剩余可读的，压缩并缓存 72: if (message.readable()) { 73: message.discardReadBytes(); 74: buffer = message; 75: // 无剩余的，设置空 Buffer 76: } else { 77: buffer = com.alibaba.dubbo.remoting.buffer.ChannelBuffers.EMPTY_BUFFER; 78: } 79: // 移除 NettyChannel 对象，若断开连接 80: NettyChannel.removeChannelIfDisconnected(ctx.getChannel()); 81: } 82: } 83: 84: @Override 85: public void exceptionCaught(ChannelHandlerContext ctx, ExceptionEvent e) { 86: ctx.sendUpstream(e); 87: } 88: }

继承 org.jboss.netty.channel.SimpleChannelUpstreamHandler 类。
buffer 属性，未读完的消息 Buffer 。在 #messageReceived(ctx, event) 方法中，我们在做拆包粘包的处理过程中，可能收到数据是不完整的。例如，不足以解析成一条 Dubbo Request 。那么，我们就需要将收到的，缓存到 buffer 中。
第 10 至 15 行：跳过非 ChannelBuffer 。
第 17 至 22 行：跳过无可读的。
第 24 至 38 行：合并 两类三种 buffer + input 成 message 。有情况，胖友看下注释。
第 41 行：获得 NettyChannel 对象。
第 42 至 69 行：循环解析，直到结束。此处，和 dubbo-remoting-netty4 的解码流程，就是一致的了。
第 71 至 75 行：有剩余的部分，压缩并缓存到 buffer 中。
第 75 至 78 行：完全读完，设置 buffer 为空( EMPTY_BUFFER )。
第 80 行：移除 NettyChannel 对象，若断开连接。

9. 日志工厂

和 netty-remoting-netty4 的日志工厂，基本一致。差异点是 DubboLogger ，无需实现类似 #log(format, arguments) 等需要格式化的方法。因此，无需复制 FormattingTuple 、MessageFormatter 类。
