注解配置

本文基于 Dubbo 2.7.1-SNAPSHOT 版本，望知悉。

1. 概述

在 Dubbo 提供的几种方式中，注解配置慢慢变成大家最常用的方式。

如果胖友不熟悉，可以查看如下文档：

2. 使用示例

我们来看看 dubbo-demo-annotation 项目下的 dubbo-demo-annotation-provider 子项目提供的 Dubbo Provider 示例。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

// Application.java
public class Application {
    /**
    * In order to make sure multicast registry works, need to specify '-Djava.net.preferIPv4Stack=true' before
    * launch the application
    */
    public static void main(String[] args) throws Exception {
        AnnotationConfigApplicationContext context = new AnnotationConfigApplicationContext(ProviderConfiguration.class);
        context.start();
        System.in.read();
    }

    @Configuration
    @EnableDubbo(scanBasePackages = "org.apache.dubbo.demo.provider") // <1>
    @PropertySource("classpath:/spring/dubbo-provider.properties") // <2>
    static class ProviderConfiguration {
        @Bean // <3>
        public RegistryConfig registryConfig() {
            RegistryConfig registryConfig = new RegistryConfig();
            registryConfig.setAddress("multicast://224.5.6.7:1234");
            return registryConfig;
        }
    }
}
  • <1> 处，使用 @EnableDubbo 注解，配置扫描 “org.apache.dubbo.demo.provider” 目录下的 @Service 和 @Reference Bean 对象。
  • <2> 处，使用 @PropertySource 注解，导入 “classpath:/spring/dubbo-provider.properties” 配置文件。
  • <3> 处，通过 @Bean 注解方法，创建 RegistryConfig Bean 对象，即注册中心。
  • 通过使用 Java Config + 注解的方式，相比 XML 来说，会更加熟悉一些~

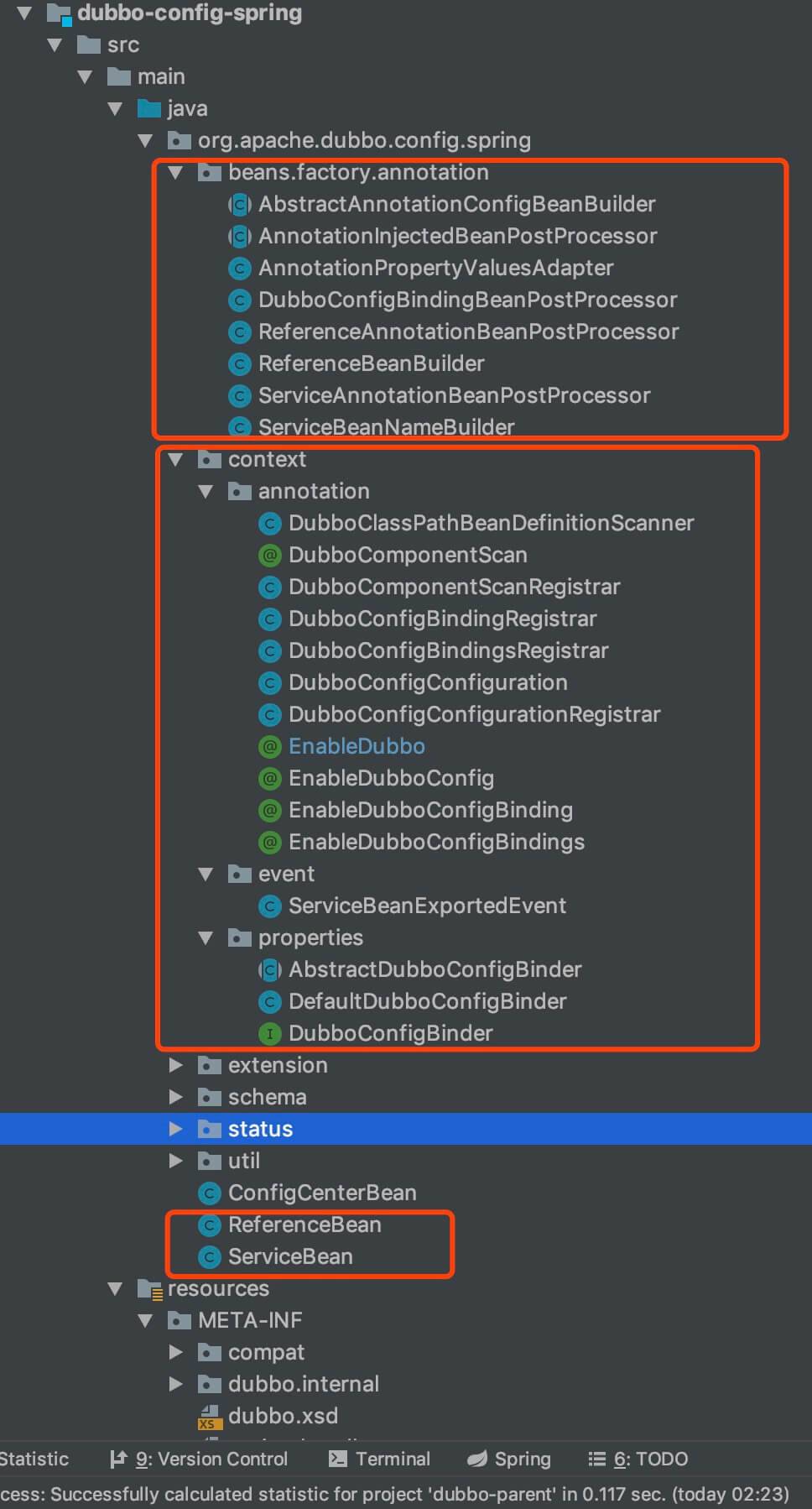

下面，我们就来看看具体的源码落。本文涉及的类，主要如下图所示：

类图

3. @EnableDubbo

org.apache.dubbo.config.spring.context.annotation.@EnableDubbo 注解，是 @EnableDubboConfig 和 @DubboComponentScan 的组合注解，使用时更加便利。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77

// EnableDubbo.java
/**
* Enables Dubbo components as Spring Beans, equals
*
{
    @link DubboComponentScan} and
    {
        @link EnableDubboConfi;
    }
}
combination.
* <p>
* Note :
{
    @link EnableDubbo;
}
must base on Spring Framework 4.2 and above
*
* @see DubboComponentScan
* @see EnableDubboConfig
* @since 2.5.8
*/
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
@EnableDubboConfig // 开启 Dubbo Config
@DubboComponentScan // 扫描 Dubbo @Service 和 @Reference Bean
public @interface EnableDubbo {
    /**
    * 配置 @DubboComponentScan 注解，扫描的包
    *
    * Base packages to scan for annotated @Service classes. <p>
    * Use
    {
        @link #scanBasePackageClasses();
    }
    for a type-safe alternative to String-based
    * package names.
    *
    * @return the base packages to scan
    * @see DubboComponentScan#basePackages()
    */
    @AliasFor(annotation = DubboComponentScan.class, attribute = "basePackages")
    String[] scanBasePackages() default {}

    /**
    * 配置 @DubboComponentScan 注解，扫描的类
    *
    * Type-safe alternative to
    {
        @link #scanBasePackages();
    }
    for specifying the packages to
    * scan for annotated @Service classes. The package of each class specified will be scanned.
    *
    * @return classes from the base packages to scan
    * @see DubboComponentScan#basePackageClasses
    */
    @AliasFor(annotation = DubboComponentScan.class, attribute = "basePackageClasses")
    Class<?>[] scanBasePackageClasses() default {}

    /**
    * 配置 @EnableDubboConfig 注解，配置是否绑定到多个 Spring Bean 上
    *
    * It indicates whether
    {
        @link AbstractConfig;
    }
    binding to multiple Spring Beans.
    *
    * @return the default value is <code>false</code>
    * @see EnableDubboConfig#multiple()
    */
    @AliasFor(annotation = EnableDubboConfig.class, attribute = "multiple")
    boolean multipleConfig() default false;
}
  • 注意看下具体的注释。

通过 @EnableDubbo 可以在指定的包名下（通过 scanBasePackages 属性），或者指定的类中（通过 scanBasePackageClasses 属性）扫描 Dubbo 的服务提供者（以 @Service 注解）以及 Dubbo 的服务消费者（以 @Reference 注解）。

扫描到 Dubbo 的服务提供方和消费者之后，对其做相应的组装并初始化，并最终完成服务暴露或者引用的工作。

4. @EnableDubboConfig

org.apache.dubbo.config.spring.context.annotation.@EnableDubboConfig 注解，开启 Dubbo 配置。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110

// EnableDubboConfig.java
/**
* As a convenient and multiple
{
    @link EnableDubboConfigBinding;
}
* in default behavior , is equal to single bean bindings with below convention prefixes of properties:
* <ul>
* <li>
{
    @link ApplicationConfig;
}
binding to property : "dubbo.application"</li>
* <li>
{
    @link ModuleConfig;
}
binding to property : "dubbo.module"</li>
* <li>
{
    @link RegistryConfig;
}
binding to property : "dubbo.registry"</li>
* <li>
{
    @link ProtocolConfig;
}
binding to property : "dubbo.protocol"</li>
* <li>
{
    @link MonitorConfig;
}
binding to property : "dubbo.monitor"</li>
* <li>
{
    @link ProviderConfig;
}
binding to property : "dubbo.provider"</li>
* <li>
{
    @link ConsumerConfig;
}
binding to property : "dubbo.consumer"</li>
* </ul>
* <p>
* In contrast, on multiple bean bindings that requires to set
{
    @link #multiple();
}
to be <code>true</code> :
* <ul>
* <li>
{
    @link ApplicationConfig;
}
binding to property : "dubbo.applications"</li>
* <li>
{
    @link ModuleConfig;
}
binding to property : "dubbo.modules"</li>
* <li>
{
    @link RegistryConfig;
}
binding to property : "dubbo.registries"</li>
* <li>
{
    @link ProtocolConfig;
}
binding to property : "dubbo.protocols"</li>
* <li>
{
    @link MonitorConfig;
}
binding to property : "dubbo.monitors"</li>
* <li>
{
    @link ProviderConfig;
}
binding to property : "dubbo.providers"</li>
* <li>
{
    @link ConsumerConfig;
}
binding to property : "dubbo.consumers"</li>
* </ul>
*
* @see EnableDubboConfigBinding
* @see DubboConfigConfiguration
* @see DubboConfigConfigurationSelector
* @since 2.5.8
*/
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
@Import(DubboConfigConfigurationRegistrar.class)
public @interface EnableDubboConfig {
    /**
    * It indicates whether binding to multiple Spring Beans.
    *
    * 配置是否绑定到多个 Spring Bean 上
    *
    * @return the default value is <code>false</code>
    * @revised 2.5.9
    */
    boolean multiple() default false;
}

4.1 DubboConfigConfigurationRegistrar

org.apache.dubbo.config.spring.context.annotation.DubboConfigConfigurationRegistrar ，实现 ImportBeanDefinitionRegistrar 接口，处理 @EnableDubboConfig 注解，注册相应的 DubboConfigConfiguration 到 Spring 容器中。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51

// DubboConfigConfigurationRegistrar.java
/**
* Dubbo
{
    @link AbstractConfig Config}
    {
        @link ImportBeanDefinitionRegistrar registe;
    }
}
,
* which order can be configured
*
* @see EnableDubboConfig
* @see DubboConfigConfiguration
* @see Ordered
* @since 2.5.8
*/
public class DubboConfigConfigurationRegistrar implements ImportBeanDefinitionRegistrar {
    @Override
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
        // 获得 @EnableDubboConfig 注解的属性
        AnnotationAttributes attributes = AnnotationAttributes.fromMap(
        importingClassMetadata.getAnnotationAttributes(EnableDubboConfig.class.getName()));
        // 获得 multiple 属性
        boolean multiple = attributes.getBoolean("multiple");
        // 如果为 true，则注册 DubboConfigConfiguration.Multiple Bean 对象
        if (multiple) {
            AnnotatedBeanDefinitionRegistryUtils.registerBeans(registry, DubboConfigConfiguration.Multiple.class);
        }
        // 如果为 false，则注册 DubboConfigConfiguration.Single Bean 对象
        else {
            AnnotatedBeanDefinitionRegistryUtils.registerBeans(registry, DubboConfigConfiguration.Single.class);
        }
    }
}

// AnnotatedBeanDefinitionRegistryUtils.java
public static void registerBeans(BeanDefinitionRegistry registry, Class<?>... annotatedClasses) {
    if (ObjectUtils.isEmpty(annotatedClasses)) {
        return;
    }
    boolean debugEnabled = logger.isDebugEnabled();
    // 创建 AnnotatedBeanDefinitionReader 对象
    AnnotatedBeanDefinitionReader reader = new AnnotatedBeanDefinitionReader(registry);
    if (debugEnabled) {
        logger.debug(registry.getClass().getSimpleName() + " will register annotated classes : "
        + Arrays.asList(annotatedClasses) + " .");
    }
    // 注册
    reader.register(annotatedClasses);
}
  • 根据 @EnableDubboConfig 注解上的 multiple 属性的不同，创建 DubboConfigConfiguration.Multiple 或 DubboConfigConfiguration.Single 对象，注册到 Spring 容器中。

4.2 DubboConfigConfiguration

org.apache.dubbo.config.spring.beans.factory.annotation.DubboConfigConfiguration ，Dubbo AbstractConfig 配置类。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68

// DubboConfigConfiguration.java
/**
* Dubbo
{
    @link AbstractConfig Config}
    {
        @link Configuratio;
    }
}
*
* @see Configuration
* @see EnableDubboConfigBindings
* @see EnableDubboConfigBinding
* @see ApplicationConfig
* @see ModuleConfig
* @see RegistryConfig
* @see ProtocolConfig
* @see MonitorConfig
* @see ProviderConfig
* @see ConsumerConfig
* @see org.apache.dubbo.config.ConfigCenterConfig
* @since 2.5.8
*/
public class DubboConfigConfiguration {
    /**
    * Single Dubbo
    {
        @link AbstractConfig Config;
    }
    Bean Binding
    */
    @EnableDubboConfigBindings({
        @EnableDubboConfigBinding(prefix = "dubbo.application", type = ApplicationConfig.class),
        @EnableDubboConfigBinding(prefix = "dubbo.module", type = ModuleConfig.class),
        @EnableDubboConfigBinding(prefix = "dubbo.registry", type = RegistryConfig.class),
        @EnableDubboConfigBinding(prefix = "dubbo.protocol", type = ProtocolConfig.class),
        @EnableDubboConfigBinding(prefix = "dubbo.monitor", type = MonitorConfig.class),
        @EnableDubboConfigBinding(prefix = "dubbo.provider", type = ProviderConfig.class),
        @EnableDubboConfigBinding(prefix = "dubbo.consumer", type = ConsumerConfig.class),
        @EnableDubboConfigBinding(prefix = "dubbo.config-center", type = ConfigCenterBean.class),
        @EnableDubboConfigBinding(prefix = "dubbo.metadata-report", type = MetadataReportConfig.class)
    })
    public static class Single {
    }

    /**
    * Multiple Dubbo
    {
        @link AbstractConfig Config;
    }
    Bean Binding
    */
    @EnableDubboConfigBindings({
        @EnableDubboConfigBinding(prefix = "dubbo.applications", type = ApplicationConfig.class, multiple = true),
        @EnableDubboConfigBinding(prefix = "dubbo.modules", type = ModuleConfig.class, multiple = true),
        @EnableDubboConfigBinding(prefix = "dubbo.registries", type = RegistryConfig.class, multiple = true),
        @EnableDubboConfigBinding(prefix = "dubbo.protocols", type = ProtocolConfig.class, multiple = true),
        @EnableDubboConfigBinding(prefix = "dubbo.monitors", type = MonitorConfig.class, multiple = true),
        @EnableDubboConfigBinding(prefix = "dubbo.providers", type = ProviderConfig.class, multiple = true),
        @EnableDubboConfigBinding(prefix = "dubbo.consumers", type = ConsumerConfig.class, multiple = true),
        @EnableDubboConfigBinding(prefix = "dubbo.config-centers", type = ConfigCenterBean.class, multiple = true),
        @EnableDubboConfigBinding(prefix = "dubbo.metadata-reports", type = MetadataReportConfig.class, multiple = true)
    })
    public static class Multiple {
    }
}
  • 乍眼一看，就是 Single 和 Multiple 内部类。其上都有 @@EnableDubboConfigBindings 和 @EnableDubboConfigBinding 注解。
    • 前者 Single ，其上的注解， prefix 都是单数。
    • 后者 Multiple ，其上的注解， prefix 都是复数，且有 multiple = true 。
  • 那么会有什么效果呢？我们继续往 「4.3 @@EnableDubboConfigBindings」「4.4 @@EnableDubboConfigBinding」 和 看。

4.3 @EnableDubboConfigBindings

org.apache.dubbo.config.spring.context.annotation.@EnableDubboConfigBindings 注解，是 @EnableDubboConfigBinding 注解的数组。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

// EnableDubboConfigBindings.java
/**
* Multiple
{
    @link EnableDubboConfigBinding}
    {
        @link Annotatio;
    }
}
*
* @since 2.5.8
* @see EnableDubboConfigBinding
*/
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(DubboConfigBindingsRegistrar.class)
public @interface EnableDubboConfigBindings {
    /**
    * The value of {
        @link EnableDubboConfigBindings;
    }
    *
    * @return non-null
    */
    EnableDubboConfigBinding[] value();
}

4.3.1 DubboConfigBindingsRegistrar

org.apache.dubbo.config.spring.context.annotation.DubboConfigBindingsRegistrar ，实现 ImportBeanDefinitionRegistrar、EnvironmentAware 接口，处理 @EnableDubboConfigBindings 注解，注册相应的 Dubbo AbstractConfig 到 Spring 容器中。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39

// DubboConfigBindingsRegistrar.java
/**
*
{
    @link AbstractConfig Dubbo Config} binding Bean registrar for
    {
        @link EnableDubboConfigBinding;
    }
}
*
* @see EnableDubboConfigBindings
* @see DubboConfigBindingRegistrar
* @since 2.5.8
*/
public class DubboConfigBindingsRegistrar implements ImportBeanDefinitionRegistrar, EnvironmentAware {
    private ConfigurableEnvironment environment;

    @Override
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
        // <1.1> 获得 @EnableDubboConfigBindings 注解
        AnnotationAttributes attributes = AnnotationAttributes.fromMap(
        importingClassMetadata.getAnnotationAttributes(EnableDubboConfigBindings.class.getName()));
        // <1.2> 获得内部的 @EnableDubboConfigBinding 注解的数组
        AnnotationAttributes[] annotationAttributes = attributes.getAnnotationArray("value");
        // <2> 创建 DubboConfigBindingRegistrar 对象，并设置 environment 属性
        DubboConfigBindingRegistrar registrar = new DubboConfigBindingRegistrar();
        registrar.setEnvironment(environment);
        // <3> 遍历 annotationAttributes 数组，使用 registrar 进行逐个 @EnableDubboConfigBinding 注解的注册对应的 Bean
        for (AnnotationAttributes element : annotationAttributes) {
            registrar.registerBeanDefinitions(element, registry);
        }
    }

    @Override
    public void setEnvironment(Environment environment) {
        Assert.isInstanceOf(ConfigurableEnvironment.class, environment);
        this.environment = (ConfigurableEnvironment) environment;
    }
}
  • <1.1> 、 <1.2> 处，获得 @EnableDubboConfigBindings 注解，从而后面获得内部的 @EnableDubboConfigBinding 注解的数组。
  • <2> 处，创建 DubboConfigBindingRegistrar 对象，并设置 environment 属性。
  • <3> 处，遍历 annotationAttributes 数组，使用 registrar ，调用 DubboConfigBindingRegistrar#registerBeanDefinitions(AnnotationAttributes attributes, BeanDefinitionRegistry registry) 方法，进行逐个 @EnableDubboConfigBinding 注解的注册对应的 Bean 。
  • 在下文中，我们会看到 DubboConfigBindingRegistrar 本来就是用来处理 EnableDubboConfigBinding 注解。

4.4 @EnableDubboConfigBinding

org.apache.dubbo.config.spring.context.annotation.@EnableDubboConfigBinding 注解，代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55

// EnableDubboConfigBinding.java
@Target(
{
    ElementType.TYPE, ElementType.ANNOTATION_TYPE;
}
)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Repeatable(EnableDubboConfigBindings.class)
@Import(DubboConfigBindingRegistrar.class)
public @interface EnableDubboConfigBinding {
    /**
    * The name prefix of the properties that are valid to bind to
    {
        @link AbstractConfig Dubbo Config;
    }
    .
    *
    * 配置前缀
    *
    * @return the name prefix of the properties to bind
    */
    String prefix();

    /**
    * 配置类
    *
    * The binding type of
    {
        @link AbstractConfig Dubbo Config;
    }
    .
    *
    * @see AbstractConfig
    * @see ApplicationConfig
    * @see ModuleConfig
    * @see RegistryConfig
    */
    Class<? extends AbstractConfig> type();

    /**
    * 是否 multiple
    *
    * It indicates whether
    {
        @link #prefix();
    }
    binding to multiple Spring Beans.
    *
    * @return the default value is <code>false</code>
    */
    boolean multiple() default false;
}
  • 每个属性，看其上的代码注释。

4.4.1 DubboConfigBindingRegistrar

org.apache.dubbo.config.spring.context.annotation.DubboConfigBindingRegistrar ，实现 ImportBeanDefinitionRegistrar、EnvironmentAware 接口，处理 @EnableDubboConfigBinding 注解，注册相应的 Dubbo AbstractConfig 到 Spring 容器中。

4.4.1.1 registerBeanDefinitions

实现 #registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) 方法，处理 @EnableDubboConfigBinding 注解，注册相应的 Dubbo AbstractConfig 到 Spring 容器中。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

//
DubboConfigBindingRegistrar.java
@Overridepublic
void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
    // <1> 获得 @EnableDubboConfigBinding 注解
    AnnotationAttributes attributes = AnnotationAttributes.fromMap(importingClassMetadata.getAnnotationAttributes(EnableDubboConfigBinding.class.getName()));
    // <2> 注册配置对应的
    Bean Definition 对象 registerBeanDefinitions(attributes, registry);
}
protected void registerBeanDefinitions(AnnotationAttributes attributes, BeanDefinitionRegistry registry) {
    // <2.1> 获得 prefix 属性
    String prefix = environment.resolvePlaceholders(attributes.getString("prefix"));
    // 因为，有可能有占位符，所以要解析。 // <2.2> 获得 type 属性，即
    AbstractConfig 的实现类 Class<? extends AbstractConfig> configClass = attributes.getClass("type");
    // <2.3> 获得 multiple 属性 boolean multiple = attributes.getBoolean("multiple"); // <2.4> 注册
    Dubbo Config Bean 对象 registerDubboConfigBeans(prefix, configClass, multiple, registry);
}
  • <1> 处，获得 @EnableDubboConfigBinding 注解。
  • <2> 注册配置对应的 Bean Definition 对象。 这里有个知识点要补充下，Spring 在创建 Bean 之前，会将 XML 配置或者注解配置，先解析成对应的 BeanDefinition 对象，然后在创建 Bean 对象。
    • <2.1> 处，获得 prefix 属性。
    • <2.2> 处，获得 type 属性，即 AbstractConfig 的实现类。
    • <2.3> 处，获得 multiple 属性。
    • <2.4> 处，调用 #registerDubboConfigBeans(String prefix, Class<? extends AbstractConfig> configClass, boolean multiple, BeanDefinitionRegistry registry) 方法，注册 Dubbo Config Bean 对象。

4.4.1.2 registerDubboConfigBeans

#registerDubboConfigBeans(String prefix, Class<? extends AbstractConfig> configClass, boolean multiple, BeanDefinitionRegistry registry) 方法，注册 Dubbo Config Bean 对象。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

//
DubboConfigBindingRegistrar.javaprivate void registerDubboConfigBeans(String prefix, Class<? extends AbstractConfig> configClass, boolean multiple, BeanDefinitionRegistry registry) {
    // <1.1> 获得 prefix 开头的配置属性
    Map<String, Object> properties = PropertySourcesUtils.getSubProperties(environment.getPropertySources(), prefix);
    // <1.2> 如果配置属性为空，则无需创建 if (CollectionUtils.isEmpty(properties))
    {
        if (log.isDebugEnabled())
        {
            log.debug("There is no property for binding to dubbo config class [" + configClass.getName() + "] within prefix [" + prefix + "]";
        }
    } return;
}
// <2> 获得配置属性对应的
Bean 名字的集合 Set<String> beanNames = multiple ? resolveMultipleBeanNames(properties) : Collections.singleton(resolveSingleBeanName(properties, configClass, registry));
// <3> 遍历 beanNames 数组，逐个注册 for (String beanName : beanNames) { // <3.1> 注注册;
Dubbo Config Bean 对象 registerDubboConfigBean(beanName, configClass, registry);
// <3.2> 注注册
Dubbo Config 对象对应的 DubboConfigBindingBeanPostProcessor 对象 registerDubboConfigBindingBeanPostProcessor(prefix, beanName, multiple, registry);
}
}
  • <1.1> 处，调用 PropertySourcesUtils#getSubProperties(Iterable<PropertySource<?» propertySources, String prefix) 方法，获得 prefix 开头的配置属性。因为，后续会用这个属性，设置到创建的 Bean 对象中。
  • <1.2> 处，如果配置属性为空，则无需创建。
  • <2> 处，根据 multiple 的值，调用不同的方法，获得配置属性对应的 Bean 名字的集合。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35

//
DubboConfigBindingRegistrar.java
// 例如：dubbo.application.$
{
    beanName;
}
.name=dubbo-demo-annotation-providerprivate
Set<String> resolveMultipleBeanNames(Map<String, Object> properties) {
    Set<String> beanNames = new LinkedHashSet<String>();
    for (String propertyName : properties.keySet()) {
        // 获取上述示例的 $
        {
            beanName;
        }
        字符串 int index = propertyName.indexOf(".");
        if (index > 0) {
            String beanName = propertyName.substring(0, index);
            beanNames.add(beanName);
        }
    }
    return beanNames;
}
// 例如：dubbo.application.name=dubbo-demo-annotation-providerprivate
String resolveSingleBeanName(Map<String, Object> properties, Class<? extends AbstractConfig> configClass, BeanDefinitionRegistry registry) {
    // 获得
    Bean 的名字 String beanName = (String) properties.get("id");
    // 如果定义，基于
    Spring 提供的机制，生成对应的 Bean 的名字。例如说：org.apache.dubbo.config.ApplicationConfig#0 if (!StringUtils.hasText(beanName)) {
        BeanDefinitionBuilder builder = BeanDefinitionBuilder.rootBeanDefinition(configClass);
        beanName = BeanDefinitionReaderUtils.generateBeanName(builder.getRawBeanDefinition(), registry);
    }
    return beanName;
}
  • 这两个方法，看看我提供的示例。
  • #resolveMultipleBeanNames(Map<String, Object> properties) 方法，可能比较难理解一点。胖友可以增加如下到配置文件中：
1
2
3

# application.properties
dubbo.applications.x.name=biu
dubbo.applications.y.name=biubiubiu

  • 此时，你需要指定 @Service Bean 使用哪个应用。

  • <3> 处，遍历 beanNames 数组，逐个注册。

    • <3.1> 处，调用 #registerDubboConfigBean(String beanName, Class<? extends AbstractConfig> configClass, BeanDefinitionRegistry registry) 方法，注册 Dubbo Config Bean 对象。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13

//
DubboConfigBindingRegistrar.javaprivate void registerDubboConfigBean(String beanName, Class<? extends AbstractConfig> configClass, BeanDefinitionRegistry registry) {
    // 创建
    BeanDefinitionBuilder 对象 BeanDefinitionBuilder builder = BeanDefinitionBuilder.rootBeanDefinition(configClass);
    // 获得
    AbstractBeanDefinition 对象 AbstractBeanDefinition beanDefinition = builder.getBeanDefinition();
    // 注册到 registry 中 registry.registerBeanDefinition(beanName, beanDefinition); if (log.isInfoEnabled())
    {
        log.info("The dubbo config bean definition [name : " + beanName + ", class : " + configClass.getName() + "] has been registered.");
    }
}

此时，仅仅是通过酱紫的方式，创建了一个 Dubbo Config Bean 对象，并没有将配置属性，设置到该对象中。答案在 <3.2> 中。

  • <3.2> 处，调用 #registerDubboConfigBindingBeanPostProcessor(String prefix, String beanName, boolean multiple, BeanDefinitionRegistry registry) 方法，注册 Dubbo Config 对象对象的 DubboConfigBindingBeanPostProcessor 对象。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

//
DubboConfigBindingRegistrar.javaprivate void registerDubboConfigBindingBeanPostProcessor(String prefix, String beanName, boolean multiple, BeanDefinitionRegistry registry) {
    // 创建
    BeanDefinitionBuilder 对象 Class<?> processorClass = DubboConfigBindingBeanPostProcessor.class;
    BeanDefinitionBuilder builder = rootBeanDefinition(processorClass);
    // 添加构造方法的参数为 actualPrefix 和 beanName 。即，创建
    DubboConfigBindingBeanPostProcessor 对象，需要这两个构造参数 String actualPrefix = multiple ? PropertySourcesUtils.normalizePrefix(prefix) + beanName : prefix;
    builder.addConstructorArgValue(actualPrefix).addConstructorArgValue(beanName);
    // 获得
    AbstractBeanDefinition 对象 AbstractBeanDefinition beanDefinition = builder.getBeanDefinition();
    // 设置 role 属性 beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE); // 注册到 registry 中
    BeanDefinitionReaderUtils.registerWithGeneratedName(beanDefinition, registry);
    if (log.isInfoEnabled()) {
        log.info("The BeanPostProcessor bean definition [" + processorClass.getName() + "] for dubbo config bean [name : " + beanName + "] has been registered.");
    }
}

因为此时 Dubbo Config Bean 对象还未创建，所以需要等后续它真的创建之后，使用 DubboConfigBindingBeanPostProcessor 类，实现对对象（Bean 对象）的配置输入的设置。

至此，我们发现，需要继续挖掘，让我们继续来看 「DubboConfigBindingBeanPostProcessor」 类。

4.5 DubboConfigBindingBeanPostProcessor

org.apache.dubbo.config.spring.beans.factory.annotation.DubboConfigBindingBeanPostProcessor ，实现 BeanPostProcessor、ApplicationContextAware、InitializingBean 接口，处理 Dubbo AbstractConfig Bean 的配置属性注入。

4.5.1 构造方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

//
DubboConfigBindingBeanPostProcessor.java/** * The prefix of Configuration Properties * * 配置属性的前缀 */private final String prefix;
/** * Binding Bean Name * * Bean 的名字 */private final String beanName;
private DubboConfigBinder dubboConfigBinder;
private ApplicationContext applicationContext;
/** * 是否忽略位置的属性 */private boolean ignoreUnknownFields = true;
/** * 是否忽略类型不对的属性 */private boolean ignoreInvalidFields = true;
/** *
@param
prefix the prefix of Configuration Properties *
@param
beanName the binding Bean Name */public DubboConfigBindingBeanPostProcessor(String prefix, String beanName) {
    Assert.notNull(prefix, "The prefix of Configuration Properties must not be null");
    Assert.notNull(beanName, "The name of bean must not be null");
    this.prefix = prefix;
    this.beanName = beanName;
}
  • 所以，我们在上文中会看到，创建 DubboConfigBindingBeanPostProcessor Bean 时，会有 builder.addConstructorArgValue(actualPrefix).addConstructorArgValue(beanName); 一段的代码。

4.5.2 afterPropertiesSet

#afterPropertiesSet() 方法，设置 dubboConfigBinder 属性。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41

//
DubboConfigBindingBeanPostProcessor.java
@Overridepublic
void afterPropertiesSet() throws Exception {
    // 获得（创建）DubboConfigBinder 对象 if (dubboConfigBinder == null)
    {
        try
        {
            dubboConfigBinder = applicationContext.getBean(DubboConfigBinder.class;
        }
    }
    catch (BeansException ignored) { if (log.isDebugEnabled()) { log.debug("DubboConfigBinder
    Bean can't be found in ApplicationContext.");
}
//
Use Default implementation dubboConfigBinder = createDubboConfigBinder(applicationContext.getEnvironment());
}
}
// 设置 ignoreUnknownFields、ignoreInvalidFields 属性 dubboConfigBinder.setIgnoreUnknownFields(ignoreUnknownFields);
dubboConfigBinder.setIgnoreInvalidFields(ignoreInvalidFields);
}/** *
Create {
    @link
    DubboConfigBinder
}
instance. * *
@param
environment *
@return
{
    @link
    DefaultDubboConfigBinder
}
*/protected DubboConfigBinder createDubboConfigBinder(Environment environment) {
    // 创建
    DefaultDubboConfigBinder 对象 DefaultDubboConfigBinder defaultDubboConfigBinder = new DefaultDubboConfigBinder();
    // 设置 environment 属性 defaultDubboConfigBinder.setEnvironment(environment);
    return defaultDubboConfigBinder;
}
  • 关于 DefaultDubboConfigBinder 类，我们在下面的小节先来瞅瞅。

4.5.2.1 DubboConfigBinder

org.apache.dubbo.config.spring.context.properties.DubboConfigBinder ，继承 EnvironmentAware 接口，Dubbo Config Binder 接口。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74

//
DubboConfigBinder.java/** * {
    @link
    AbstractConfig DubboConfig
}
Binder * *
@see
AbstractConfig *
@see
EnvironmentAware *
@since
2.5.11 */public interface DubboConfigBinder extends EnvironmentAware {
    /** * Set whether to ignore unknown fields, that is, whether to ignore bind * parameters that do not have corresponding fields in the target object. * <p>Default is "true". Turn this off to enforce that all bind parameters * must have a matching field in the target object. * *
    @see
    #bind */ void setIgnoreUnknownFields(boolean ignoreUnknownFields);
    /** * Set whether to ignore invalid fields, that is, whether to ignore bind * parameters that have corresponding fields in the target object which are * not accessible (for example because of null values in the nested path). * <p>Default is "false". * *
    @see
    #bind */ void setIgnoreInvalidFields(boolean ignoreInvalidFields);
    /** * Bind the properties to Dubbo Config Object under specified prefix. * *
    @param
    prefix *
    @param
    dubboConfig */ <C extends AbstractConfig> void bind(String prefix, C dubboConfig);
}```

- 后续的实现，我们会看到基于 Spring DataBinder 来实现。不了解 DataBinder 的胖友，可以看看 [《Spring 验证、数据绑定和类型转换》](https://my.oschina.net/u/2453016/blog/1512184)
文章。

### 4.5.2.2 DubboConfigBinder

org.apache.dubbo.config.spring.context.properties.AbstractDubboConfigBinder ，实现 DubboConfigBinder 接口，DubboConfigBinder 的抽象基类。代码如下：

```java
//
AbstractDubboConfigBinder.javapublic abstract class AbstractDubboConfigBinder implements DubboConfigBinder {
    /** * PropertySource 数组（迭代） */ private Iterable<PropertySource<?>> propertySources;
    private boolean ignoreUnknownFields = true;
    private boolean ignoreInvalidFields = false;
    /** * Get multiple {
        @link
        PropertySource propertySources
    }
    * *
    @return
    multiple {
        @link
        PropertySource propertySources
    }
    */ protected Iterable<PropertySource<?>> getPropertySources() {
        return propertySources;
    }
    public boolean isIgnoreUnknownFields() {
        return ignoreUnknownFields;
    }
    @Override
    public void setIgnoreUnknownFields(boolean ignoreUnknownFields) {
        this.ignoreUnknownFields = ignoreUnknownFields;
    }
    public boolean isIgnoreInvalidFields() {
        return ignoreInvalidFields;
    }
    @Override
    public void setIgnoreInvalidFields(boolean ignoreInvalidFields) {
        this.ignoreInvalidFields = ignoreInvalidFields;
    }
    @Override
    public final void setEnvironment(Environment environment) {
        if (environment instanceof ConfigurableEnvironment) {
            this.propertySources = ((ConfigurableEnvironment) environment).getPropertySources();
        }
    }
}
  • 提供默认的属性。

4.5.2.3 DefaultDubboConfigBinder

org.apache.dubbo.config.spring.context.properties.DefaultDubboConfigBinder ，继承 AbstractDubboConfigBinder 抽象类，使用 Spring DataBinder ，将配置属性设置到 Dubbo Config 对象中。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

//
DefaultDubboConfigBinder.java/** * Default {
    @link
    DubboConfigBinder
}
implementation based on Spring {
    @link
    DataBinder
}
*/public class DefaultDubboConfigBinder extends AbstractDubboConfigBinder {
    @Override
    public <C extends AbstractConfig> void bind(String prefix, C dubboConfig) {
        // 将 dubboConfig 包装成
        DataBinder 对象 DataBinder dataBinder = new DataBinder(dubboConfig);
        //
        Set ignored*
        // 设置响应的 ignored* 属性 dataBinder.setIgnoreInvalidFields(isIgnoreInvalidFields());
        dataBinder.setIgnoreUnknownFields(isIgnoreUnknownFields());
        //
        Get properties under specified prefix from PropertySources
        // 获得 prefix 开头的配置属性
        Map<String, Object> properties = PropertySourcesUtils.getSubProperties(getPropertySources(), prefix);
        //
        Convert Map to MutablePropertyValues
        // 创建
        MutablePropertyValues 对象 MutablePropertyValues propertyValues = new MutablePropertyValues(properties);
        //
        Bind
        // 绑定配置属性到 dubboConfig 中 dataBinder.bind(propertyValues); }}
  • 比较简单，胖友自己瞅一眼代码即可。

在 《Dubbo 源码分析 —— 集成 Spring Boot》 中，我们可以看到另外一个 AbstractDubboConfigBinder 的实现类 RelaxedDubboConfigBinder ，它是基于 Spring Boot Binder 进行实现。 因为艿艿没有深入了解过 Spring Boot Binder 相关，所以还说不出和 Spring DataBinder 的区别在哪。orz

4.5.3 postProcessBeforeInitialization

实现 #postProcessBeforeInitialization(Object bean, String beanName) 方法，设置配置属性到 Dubbo Config 中。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14

//
DubboConfigBindingBeanPostProcessor.java
@Overridepublic
Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
    // 判断必须是 beanName ，并且是
    AbstractConfig 类型 if (beanName.equals(this.beanName) && bean instanceof AbstractConfig) {
        AbstractConfig dubboConfig = (AbstractConfig) bean;
        // 设置属性到 dubboConfig 中 dubboConfigBinder.bind(prefix, dubboConfig); if (log.isInfoEnabled())
        {
            log.info("The properties of bean [name : " + beanName + "] have been binding by prefix of " + "configuration properties : " + prefix);
        } } return bean;
    }

至此，Dubbo Config 对象的创建和属性设置，已经完成。如果胖友还是有点懵逼，可以调试一次，没有什么复杂逻辑哟。

5. @DubboComponentScan

org.apache.dubbo.config.spring.context.annotation.@DubboComponentScan 注解，配置要扫描 @Service 和 @Reference 注解的包或者类们，从而创建对应的 Bean 对象。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76

//
DubboComponentScan.java/** * Dubbo Component Scan {
    @link
    Annotation
}
,scans the classpath for annotated components that will be auto-registered as * Spring beans. Dubbo-provided {
    @link
    Service
}
and {
    @link
    Reference
}
. * *
@see
Service *
@see
Reference *
@since
2.5.7 */
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import(DubboComponentScanRegistrar.class)
public
@interface
DubboComponentScan {
    /** * 和 {
        @link
        #basePackages()
    }
    等价 * * Alias for the {
        @link
        #basePackages()
    }
    attribute. Allows for more concise annotation * declarations e.g.: {
        @code
        @DubboComponentScan("org.my.pkg")
    }
    instead of * {
        @code
        @DubboComponentScan(basePackages="org.my.pkg")
    }
    . * *
    @return
    the base packages to scan */ String[] value() default {
    }
    ;
    /** * 要扫描的包的数组 * * Base packages to scan for annotated
    @Service
    classes. {
        @link
        #value()
    }
    is an * alias for (and mutually exclusive with) this attribute. * <p> * Use {
        @link
        #basePackageClasses()
    }
    for a type-safe alternative to String-based * package names. * *
    @return
    the base packages to scan */ String[] basePackages() default {
    }
    ;
    /** * 要扫描的类的数组 * * Type-safe alternative to {
        @link
        #basePackages()
    }
    for specifying the packages to * scan for annotated
    @Service
    classes. The package of each class specified will be * scanned. * *
    @return
    classes from the base packages to scan */ Class<?>[] basePackageClasses() default {
    }
    ;
}

5.1 DubboComponentScanRegistrar

org.apache.dubbo.config.spring.context.annotation.DubboComponentScanRegistrar ，实现 ImportBeanDefinitionRegistrar 接口，处理 @DubboComponentScan 注解，注册相应的 ServiceAnnotationBeanPostProcessor 和 ReferenceAnnotationBeanPostProcessor 到 Spring 容器中。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

//
DubboComponentScanRegistrar.java
@Overridepublic
void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
    // <1> 获得要扫描的包
    Set<String> packagesToScan = getPackagesToScan(importingClassMetadata);
    // <2> 创建
    ServiceAnnotationBeanPostProcessor Bean 对象，后续扫描 `
    @Service
    ` 注解的类，创建对应的 Service Bean 对象 registerServiceAnnotationBeanPostProcessor(packagesToScan, registry);
    // <3> 创建
    ReferenceAnnotationBeanPostProcessor Bean 对象，后续扫描 `
    @Reference
    ` 注解的类，创建对应的 Reference Bean 对象 registerReferenceAnnotationBeanPostProcessor(registry);
}
// ... 省略稍后调用的方法。
  • <1> 处，调用 #getPackagesToScan(AnnotationMetadata metadata) 方法，获得要扫描的包。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

//
DubboComponentScanRegistrar.javaprivate Set<String> getPackagesToScan(AnnotationMetadata metadata) {
    // 获得 @DubboComponentScan 注解
    AnnotationAttributes attributes = AnnotationAttributes.fromMap(metadata.getAnnotationAttributes(DubboComponentScan.class.getName()));
    // 获得其上的属性
    String[] basePackages = attributes.getStringArray("basePackages");
    Class<?>[] basePackageClasses = attributes.getClassArray("basePackageClasses");
    String[] value = attributes.getStringArray("value");
    //
    Appends value array attributes
    // 情况一，将属性添加到 packagesToScan 集合中
    Set<String> packagesToScan = new LinkedHashSet<String>(Arrays.asList(value));
    packagesToScan.addAll(Arrays.asList(basePackages));
    for (Class<?> basePackageClass : basePackageClasses) {
        packagesToScan.add(ClassUtils.getPackageName(basePackageClass));
    }
    // 情况二，如果 packagesToScan 为空，则默认使用注解类所在的包 if (packagesToScan.isEmpty()) { return
    Collections.singleton(ClassUtils.getPackageName(metadata.getClassName()));
}
return packagesToScan;
}

有两种情况，胖友看的时候，要注意下。

  • <2> 处，调用 #registerServiceAnnotationBeanPostProcessor(Set packagesToScan, BeanDefinitionRegistry registry) 方法，创建 ServiceAnnotationBeanPostProcessor Bean 对象，后续扫描 @Service 注解的类，创建对应的 Service Bean 对象。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12

//
DubboComponentScanRegistrar.javaprivate void registerServiceAnnotationBeanPostProcessor(Set<String> packagesToScan, BeanDefinitionRegistry registry) {
    // 创建
    BeanDefinitionBuilder 对象 BeanDefinitionBuilder builder = BeanDefinitionBuilder.rootBeanDefinition(ServiceAnnotationBeanPostProcessor.class);
    // 设置构造方法参数为 packagesToScan ，即
    BeanDefinitionBuilder 扫描该包 builder.addConstructorArgValue(packagesToScan);
    // 设置 role 属性 builder.setRole(BeanDefinition.ROLE_INFRASTRUCTURE); // 获得
    AbstractBeanDefinition 对象 AbstractBeanDefinition beanDefinition = builder.getBeanDefinition();
    // 注册到 registry 中
    BeanDefinitionReaderUtils.registerWithGeneratedName(beanDefinition, registry);
}

关于 ServiceAnnotationBeanPostProcessor 类，我们在 「5.2 ServiceAnnotationBeanPostProcessor」 中，详细解析。

  • <3> 处，调用 #registerReferenceAnnotationBeanPostProcessor(BeanDefinitionRegistry registry) 方法，创建 ReferenceAnnotationBeanPostProcessor Bean 对象，后续扫描 @Reference 注解的类，创建对应的 Reference Bean 对象。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

//
DubboComponentScanRegistrar.javaprivate void registerReferenceAnnotationBeanPostProcessor(BeanDefinitionRegistry registry) {
    //
    Register
    @Reference
    Annotation Bean Processor BeanRegistrar.registerInfrastructureBean(registry, ReferenceAnnotationBeanPostProcessor.BEAN_NAME, ReferenceAnnotationBeanPostProcessor.class);
}
//
BeanRegistrar.javapublic static void registerInfrastructureBean(BeanDefinitionRegistry beanDefinitionRegistry, String beanName, Class<?> beanType) {
    // 不存在 beanName 对应的
    BeanDefinition 对象 if (!beanDefinitionRegistry.containsBeanDefinition(beanName)) {
        // 创建
        RootBeanDefinition 对象 RootBeanDefinition beanDefinition = new RootBeanDefinition(beanType);
        // 设置 role beanDefinition.setRole(BeanDefinition.ROLE_INFRASTRUCTURE);
        // 注册到 beanDefinitionRegistry 中 beanDefinitionRegistry.registerBeanDefinition(beanName, beanDefinition);
    }}

关于 ReferenceAnnotationBeanPostProcessor 类，我们在 「5.3 ReferenceAnnotationBeanPostProcessor」 中，详细解析。

5.2 ServiceAnnotationBeanPostProcessor

org.apache.dubbo.config.spring.beans.factory.annotation.ServiceAnnotationBeanPostProcessor ，实现 BeanDefinitionRegistryPostProcessor、EnvironmentAware、ResourceLoaderAware、BeanClassLoaderAware 接口，扫描 @Service 注解的类，创建对应的 Spring BeanDefinition 对象，从而创建 Dubbo Service Bean 对象。

5.2.1 构造方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

//
ServiceAnnotationBeanPostProcessor.java/** * 要扫描的包的集合 */private final Set<String> packagesToScan;
private Environment environment;
private ResourceLoader resourceLoader;
private ClassLoader classLoader;
public ServiceAnnotationBeanPostProcessor(String... packagesToScan) {
    // 上述文章使用到的构造方法 this(Arrays.asList(packagesToScan));}public
    ServiceAnnotationBeanPostProcessor(Collection<String> packagesToScan) {
        this(new LinkedHashSet<String>(packagesToScan));
    }
    public ServiceAnnotationBeanPostProcessor(Set<String> packagesToScan) {
        this.packagesToScan = packagesToScan;
    }

5.2.2 postProcessBeanDefinitionRegistry

实现 #postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) 方法，扫描 @Service 注解的类，创建对应的 Spring BeanDefinition 对象，从而创建 Dubbo Service Bean 对象。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

//
ServiceAnnotationBeanPostProcessor.java
@Overridepublic
void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
    // <1> 解析 packagesToScan 集合。因为，可能存在占位符
    Set<String> resolvedPackagesToScan = resolvePackagesToScan(packagesToScan);
    // <2> 扫描 packagesToScan 包，创建对应的
    Spring BeanDefinition 对象，从而创建 Dubbo Service Bean 对象。 if (!CollectionUtils.isEmpty(resolvedPackagesToScan)) {
        registerServiceBeans(resolvedPackagesToScan, registry);
    }
    else {
        if (logger.isWarnEnabled()) {
            logger.warn("packagesToScan is empty , ServiceBean registry will be ignored!");
        }
    }
}
  • <1> 处，调用 #resolvePackagesToScan(Set packagesToScan) 方法，解析 packagesToScan 集合。因为，可能存在占位符。代码如下：
1
2
3
4
5
6
7
8
9
10

//
ServiceAnnotationBeanPostProcessor.javaprivate Set<String> resolvePackagesToScan(Set<String> packagesToScan) {
    Set<String> resolvedPackagesToScan = new LinkedHashSet<String>(packagesToScan.size());
    // 遍历 packagesToScan 数组 for (String packageToScan : packagesToScan) { if (StringUtils.hasText(packageToScan)) { // 解析可能存在的占位符;
    String resolvedPackageToScan = environment.resolvePlaceholders(packageToScan.trim());
    // 添加到 resolvedPackagesToScan 中 resolvedPackagesToScan.add(resolvedPackageToScan);
} } return resolvedPackagesToScan;
}
  • <2>「5.2.3 resolvePackagesToScan」 处，调用 #registerServiceBeans(Set packagesToScan, BeanDefinitionRegistry registry) 方法，扫描 packagesToScan 包，创建对应的 Spring BeanDefinition 对象，从而创建 Dubbo Service Bean 对象。详细解析，见 中。

5.2.3 resolvePackagesToScan

#registerServiceBeans(Set packagesToScan, BeanDefinitionRegistry registry) 方法，扫描 packagesToScan 包，创建对应的 Spring BeanDefinition 对象，从而创建 Dubbo Service Bean 对象。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48

//
ServiceAnnotationBeanPostProcessor.javaprivate void registerServiceBeans(Set<String> packagesToScan, BeanDefinitionRegistry registry) {
    // <1.1> 创建
    DubboClassPathBeanDefinitionScanner 对象 DubboClassPathBeanDefinitionScanner scanner = new DubboClassPathBeanDefinitionScanner(registry, environment, resourceLoader);
    // <1.2> 获得
    BeanNameGenerator 对象，并设置 beanNameGenerator 到 scanner 中 BeanNameGenerator beanNameGenerator = resolveBeanNameGenerator(registry);
    scanner.setBeanNameGenerator(beanNameGenerator);
    // <1.3> 设置过滤获得带有 @Service 注解的类 scanner.addIncludeFilter(new
    AnnotationTypeFilter(Service.class));
    // <2> 遍历 packagesToScan 数组 for (String packageToScan : packagesToScan) { //;
    Registers
    @Service
    Bean first
    // <2.1> 执行扫描 scanner.scan(packageToScan); //
    Finds all BeanDefinitionHolders of
    @Service
    whether
    @ComponentScan
    scans or not.
    // <2.2> 创建每个在 packageToScan 扫描到的类，对应的
    BeanDefinitionHolder 对象，返回 BeanDefinitionHolder 集合 Set<BeanDefinitionHolder> beanDefinitionHolders = findServiceBeanDefinitionHolders(scanner, packageToScan, registry, beanNameGenerator);
    // <2.3> 注册到 registry 中 if (!CollectionUtils.isEmpty(beanDefinitionHolders))
    {
        for (BeanDefinitionHolder beanDefinitionHolder : beanDefinitionHolders)
        {
            registerServiceBean(beanDefinitionHolder, registry, scanner;
        }
    }
    if (logger.isInfoEnabled()) { logger.info(beanDefinitionHolders.size() + " annotated
    Dubbo's
    @Service
    Components {
        " + beanDefinitionHolders + "
    }
    were scanned under package[" + packageToScan + "]");
}
}
else {
    if (logger.isWarnEnabled()) {
        logger.warn("No Spring Bean annotating Dubbo's
        @Service
        was found under package[" + packageToScan + "]");
    }
}
}
}
  • <1.1>链接 处，创建 DubboClassPathBeanDefinitionScanner 对象。它是用于扫描指定包下符合条件的类，用于将每个符合条件的类，创建对应的 BeanDefinition 对象，从而创建 Bean 。关于 DubboClassPathBeanDefinitionScanner 类，胖友点击 瞅一眼即可。
  • <1.2> 处，调用 #resolveBeanNameGenerator(BeanDefinitionRegistry registry) 方法，获得 BeanNameGenerator 对象，并设置 beanNameGenerator 到 scanner 中。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46

//
ServiceAnnotationBeanPostProcessor.java/** * It'd better to use BeanNameGenerator instance that should reference * {
    @link
    ConfigurationClassPostProcessor#componentScanBeanNameGenerator
}
, * thus it maybe a potential problem on bean name generation. * *
@param
registry {
    @link
    BeanDefinitionRegistry
}
*
@return
{
    @link
    BeanNameGenerator
}
instance *
@see
SingletonBeanRegistry *
@see
AnnotationConfigUtils#CONFIGURATION_BEAN_NAME_GENERATOR *
@see
ConfigurationClassPostProcessor#processConfigBeanDefinitions *
@since
2.5.8 */
@SuppressWarnings("Duplicates")
private BeanNameGenerator resolveBeanNameGenerator(BeanDefinitionRegistry registry) {
    BeanNameGenerator beanNameGenerator = null;
    // 如果是
    SingletonBeanRegistry 类型，从中获得对应的 BeanNameGenerator Bean 对象 if (registry instanceof SingletonBeanRegistry) {
        SingletonBeanRegistry singletonBeanRegistry = SingletonBeanRegistry.class.cast(registry);
        beanNameGenerator = (BeanNameGenerator) singletonBeanRegistry.getSingleton(AnnotationConfigUtils.CONFIGURATION_BEAN_NAME_GENERATOR);
    }
    // 如果不存在，则创建
    AnnotationBeanNameGenerator 对象 if (beanNameGenerator == null) {
        if (logger.isInfoEnabled()) {
            logger.info("BeanNameGenerator bean can't be found in BeanFactory with name [" + CONFIGURATION_BEAN_NAME_GENERATOR + "]");
            logger.info("BeanNameGenerator will be a instance of " + AnnotationBeanNameGenerator.class.getName() + " , it maybe a potential problem on bean name generation.");
        }
        beanNameGenerator = new AnnotationBeanNameGenerator();
    }
    return beanNameGenerator;
}
  • <1.3> 处，设置过滤获得带有 @Service 注解的类。关于 @Service 注解的具体的属性，本文就不过分介绍，胖友自己瞅瞅。
  • <2> 处，遍历 packagesToScan 数组。
    • <2.1> 处，调用 DubboClassPathBeanDefinitionScanner#scan(String… basePackages) 方法，执行扫描。
    • <2.2>「5.2.4 findServiceBeanDefinitionHolders」 处，调用 #findServiceBeanDefinitionHolders(ClassPathBeanDefinitionScanner scanner, String packageToScan, BeanDefinitionRegistry registry, BeanNameGenerator beanNameGenerator) 方法，创建每个在 packageToScan 扫描到的类，对应的 BeanDefinitionHolder 对象，返回 BeanDefinitionHolder 集合。详细解析 ，见 中。
    • <2.3>「5.2.5 registerServiceBean」 处，调用 #registerServiceBean(BeanDefinitionHolder beanDefinitionHolder, BeanDefinitionRegistry registry, DubboClassPathBeanDefinitionScanner scanner) 方法，注册到 registry 中。详细解析，见 中。

5.2.4 findServiceBeanDefinitionHolders

#findServiceBeanDefinitionHolders(ClassPathBeanDefinitionScanner scanner, String packageToScan, BeanDefinitionRegistry registry, BeanNameGenerator beanNameGenerator) 方法，创建每个在 packageToScan 扫描到的类，对应的 BeanDefinitionHolder 对象，返回 BeanDefinitionHolder 集合。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47

//
ServiceAnnotationBeanPostProcessor.java/** * Finds a {
    @link
    Set
}
of {
    @link
    BeanDefinitionHolder BeanDefinitionHolders
}
whose bean type annotated * {
    @link
    Service
}
Annotation. * *
@param
scanner {
    @link
    ClassPathBeanDefinitionScanner
}
*
@param
packageToScan pachage to scan *
@param
registry {
    @link
    BeanDefinitionRegistry
}
*
@return
non-null *
@since
2.5.8 */
@SuppressWarnings("Duplicates")
private Set<BeanDefinitionHolder> findServiceBeanDefinitionHolders( ClassPathBeanDefinitionScanner scanner, String packageToScan, BeanDefinitionRegistry registry, BeanNameGenerator beanNameGenerator) {
    // 获得 packageToScan 包下符合条件的
    BeanDefinition 集合 Set<BeanDefinition> beanDefinitions = scanner.findCandidateComponents(packageToScan);
    // 创建
    BeanDefinitionHolder 集合 Set<BeanDefinitionHolder> beanDefinitionHolders = new LinkedHashSet<BeanDefinitionHolder>(beanDefinitions.size());
    // 遍历 beanDefinitions 数组 for (BeanDefinition beanDefinition : beanDefinitions) { // 获得;
    Bean 的名字 String beanName = beanNameGenerator.generateBeanName(beanDefinition, registry);
    // 创建
    BeanDefinitionHolder 对象 BeanDefinitionHolder beanDefinitionHolder = new BeanDefinitionHolder(beanDefinition, beanName);
    // 添加到 beanDefinitions 中 beanDefinitionHolders.add(beanDefinitionHolder);
} return beanDefinitionHolders;
}

5.2.5 registerServiceBean

#registerServiceBean(BeanDefinitionHolder beanDefinitionHolder, BeanDefinitionRegistry registry, DubboClassPathBeanDefinitionScanner scanner) 方法，注册到 registry 中。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

//
ServiceAnnotationBeanPostProcessor.java/** * Registers {
    @link
    ServiceBean
}
from new annotated {
    @link
    Service
}
{
    @link
    BeanDefinition
}
* *
@param
beanDefinitionHolder *
@param
registry *
@param
scanner *
@see
ServiceBean *
@see
BeanDefinition */
@SuppressWarnings("Duplicates")
private void registerServiceBean(BeanDefinitionHolder beanDefinitionHolder, BeanDefinitionRegistry registry, DubboClassPathBeanDefinitionScanner scanner) {
    // <1.1> 解析
    Bean 的类 Class<?> beanClass = resolveClass(beanDefinitionHolder);
    // <1.2> 获得 @Service 注解
    Service service = AnnotationUtils.findAnnotation(beanClass, Service.class);
    // <1.3> 获得
    Service 接口 Class<?> interfaceClass = resolveServiceInterfaceClass(beanClass, service);
    // <1.4> 获得
    Bean 的名字 String annotatedServiceBeanName = beanDefinitionHolder.getBeanName();
    // <1.5> 创建
    AbstractBeanDefinition 对象 AbstractBeanDefinition serviceBeanDefinition = buildServiceBeanDefinition(service, interfaceClass, annotatedServiceBeanName);
    //
    ServiceBean Bean name

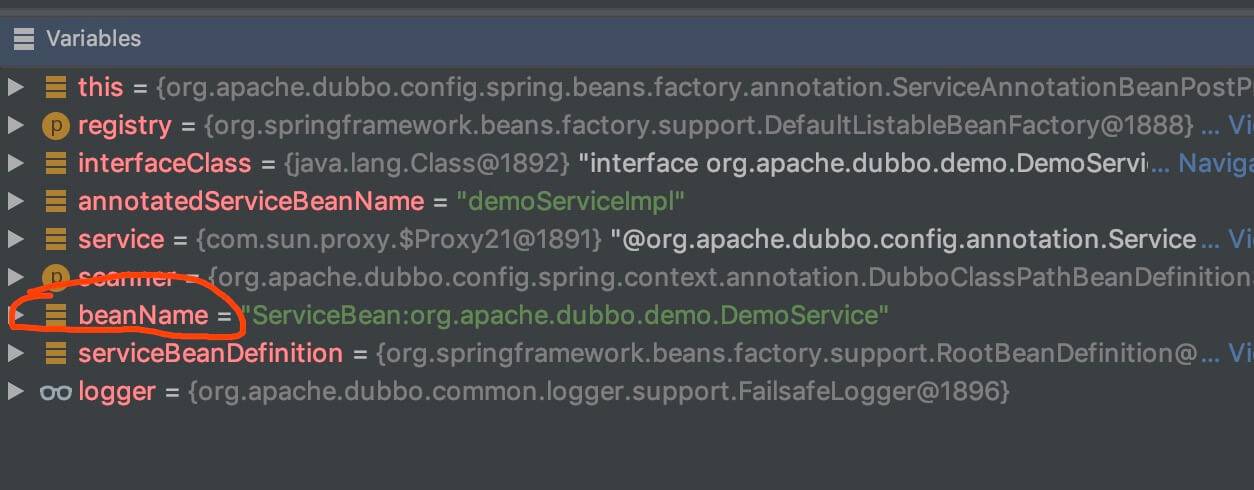

    // <2> 重新生成
    Bean 的名字 String beanName = generateServiceBeanName(service, interfaceClass, annotatedServiceBeanName);
    // <3> 校验在 scanner 中，已经存在 beanName 。若不存在，则进行注册。 if (scanner.checkCandidate(beanName, serviceBeanDefinition)) { // check duplicated candidate bean registry.registerBeanDefinition(beanName, serviceBeanDefinition); if (logger.isInfoEnabled()) { logger.info("The
    BeanDefinition[" + serviceBeanDefinition + "] of ServiceBean has been registered with name : " + beanName);
}
}
else {
    if (logger.isWarnEnabled()) {
        logger.warn("The Duplicated BeanDefinition[" + serviceBeanDefinition + "] of ServiceBean[ bean name : " + beanName + "] was be found , Did
        @DubboComponentScan
        scan to same package in many times?");
    }
}
}
  • <1.1> 处，调用 #resolveClass(BeanDefinitionHolder beanDefinitionHolder) 方法，解析返回 Bean 的类。代码如下：
1
2
3
4
5
6
7
8
9
10

//
ServiceAnnotationBeanPostProcessor.javaprivate Class<?> resolveClass(BeanDefinitionHolder beanDefinitionHolder) {
    BeanDefinition beanDefinition = beanDefinitionHolder.getBeanDefinition();
    return resolveClass(beanDefinition);
}
private Class<?> resolveClass(BeanDefinition beanDefinition) {
    String beanClassName = beanDefinition.getBeanClassName();
    return ClassUtils.resolveClassName(beanClassName, classLoader);
}

因为 BeanDefinition 的 beanClassName 是 String 类型，所以得转换成 Class 类型。

  • <1.2> 处，获得 @Service 注解。
  • <1.3> 处，调用 #resolveServiceInterfaceClass(Class<?> annotatedServiceBeanClass, Service service) 方法，获得 Service 接口。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

//
ServiceAnnotationBeanPostProcessor.java
@SuppressWarnings("Duplicates")
private Class<?> resolveServiceInterfaceClass(Class<?> annotatedServiceBeanClass, Service service) {
    // 首先，从注解本身上获得
    Class<?> interfaceClass = service.interfaceClass();
    if (void.class.equals(interfaceClass)) {
        // 一般是满足的 interfaceClass = null; // 获得 @Service 注解的 interfaceName 属性。
        String interfaceClassName = service.interfaceName();
        // 如果存在，获得其对应的类 if (StringUtils.hasText(interfaceClassName)) { if (ClassUtils.isPresent(interfaceClassName, classLoader)) { interfaceClass =
        ClassUtils.resolveClassName(interfaceClassName, classLoader);
    }
}
}
// <X>【一般情况下，使用这个】获得不到，则从被注解的类上获得其实现的首个接口 if (interfaceClass == null) {
    Class<?>[] allInterfaces = annotatedServiceBeanClass.getInterfaces();
    if (allInterfaces.length > 0) {
        interfaceClass = allInterfaces[0];
    }
}
Assert.notNull(interfaceClass, "
@Service
interfaceClass() or interfaceName() or interface class must be present!");
Assert.isTrue(interfaceClass.isInterface(), "The type that was annotated
@Service
is not an interface!");
return interfaceClass;
}

虽然代码比较长，但是重点看 处，从被注解的类上获得其实现的首个接口。

  • <1.4> 处，获得 Bean 的名字。
  • <1.5> 处，调用 #buildServiceBeanDefinition(Service service, Class<?> interfaceClass, String annotatedServiceBeanName) 方法，创建 AbstractBeanDefinition 对象。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97

//
ServiceAnnotationBeanPostProcessor.java
@SuppressWarnings("Duplicates")
private AbstractBeanDefinition buildServiceBeanDefinition(Service service, Class<?> interfaceClass, String annotatedServiceBeanName) {
    // 创建
    BeanDefinitionBuilder 对象 BeanDefinitionBuilder builder = BeanDefinitionBuilder.rootBeanDefinition(ServiceBean.class);
    // 获得
    AbstractBeanDefinition 对象 AbstractBeanDefinition beanDefinition = builder.getBeanDefinition();
    // 获得
    MutablePropertyValues 属性。后续 ，通过向它添加属性，设置到 BeanDefinition 中，即 Service Bean 中。 MutablePropertyValues propertyValues = beanDefinition.getPropertyValues();
    // <X> 创建
    AnnotationPropertyValuesAdapter 对象，添加到 propertyValues 中。
    // 此处，是将注解上的属性，设置到 propertyValues 中
    String[] ignoreAttributeNames = of("provider", "monitor", "application", "module", "registry", "protocol", "interface", "interfaceName");
    // 忽略的属性，下面进行单独设置。 propertyValues.addPropertyValues(new
    AnnotationPropertyValuesAdapter(service, environment, ignoreAttributeNames));
    //
    References "ref" property to annotated-
    @Service
    Bean
    // 设置 ref 属性指向的
    Service Bean 名字 addPropertyReference(builder, "ref", annotatedServiceBeanName);
    //
    Set interface 设置 Service 接口类全类名 builder.addPropertyValue("interface", interfaceClass.getName());
    /** * Add {
        @link
        org.apache.dubbo.config.ProviderConfig
    }
    Bean reference * * 添加 provider 属性对应的 ProviderConfig Bean 对象 */ String providerConfigBeanName = service.provider();
    if (StringUtils.hasText(providerConfigBeanName)) {
        addPropertyReference(builder, "provider", providerConfigBeanName);
    }
    /** * Add {
        @link
        org.apache.dubbo.config.MonitorConfig
    }
    Bean reference * * 添加 monitor 属性对应的 MonitorConfig Bean 对象 */ String monitorConfigBeanName = service.monitor();
    if (StringUtils.hasText(monitorConfigBeanName)) {
        addPropertyReference(builder, "monitor", monitorConfigBeanName);
    }
    /** * Add {
        @link
        org.apache.dubbo.config.ApplicationConfig
    }
    Bean reference * * 添加 application 属性对应的 ApplicationConfig Bean 对象 */ String applicationConfigBeanName = service.application();
    if (StringUtils.hasText(applicationConfigBeanName)) {
        addPropertyReference(builder, "application", applicationConfigBeanName);
    }
    /** * Add {
        @link
        org.apache.dubbo.config.ModuleConfig
    }
    Bean reference * * 添加 module 属性对应的 ModuleConfig Bean 对象 */ String moduleConfigBeanName = service.module();
    if (StringUtils.hasText(moduleConfigBeanName)) {
        addPropertyReference(builder, "module", moduleConfigBeanName);
    }
    /** * Add {
        @link
        org.apache.dubbo.config.RegistryConfig
    }
    Bean reference * * 添加 registries 属性对应的 RegistryConfig Bean 数组（一个或多个） */ String[] registryConfigBeanNames = service.registry();
    List<RuntimeBeanReference> registryRuntimeBeanReferences = toRuntimeBeanReferences(registryConfigBeanNames);
    if (!registryRuntimeBeanReferences.isEmpty()) {
        builder.addPropertyValue("registries", registryRuntimeBeanReferences);
    }
    /** * Add {
        @link
        org.apache.dubbo.config.ProtocolConfig
    }
    Bean reference * * 添加 protocols 属性对应的 ProtocolConfig Bean 数组（一个或多个） */ String[] protocolConfigBeanNames = service.protocol();
    List<RuntimeBeanReference> protocolRuntimeBeanReferences = toRuntimeBeanReferences(protocolConfigBeanNames);
    if (!protocolRuntimeBeanReferences.isEmpty()) {
        builder.addPropertyValue("protocols", protocolRuntimeBeanReferences);
    }
    return builder.getBeanDefinition();
}
//
RuntimeBeanReference ，在解析到依赖的Bean的时侯，解析器会依据依赖bean的name创建一个RuntimeBeanReference对像，将这个对像放入BeanDefinition的MutablePropertyValues中。
// 此处，和上面不太一样的原因，因为是多个@SuppressWarnings("Duplicates")private
ManagedList<RuntimeBeanReference> toRuntimeBeanReferences(String... beanNames) {
    ManagedList<RuntimeBeanReference> runtimeBeanReferences = new ManagedList<RuntimeBeanReference>();
    if (!ObjectUtils.isEmpty(beanNames)) {
        for (String beanName : beanNames) {
            // 解析真正的
            Bean 名字，如果有占位符的话 String resolvedBeanName = environment.resolvePlaceholders(beanName);
            runtimeBeanReferences.add(new RuntimeBeanReference(resolvedBeanName));
        }
    }
    return runtimeBeanReferences;
}
// 添加属性值是引用类型private void addPropertyReference(BeanDefinitionBuilder builder,
String propertyName, String beanName) {
    String resolvedBeanName = environment.resolvePlaceholders(beanName);
    builder.addPropertyReference(propertyName, resolvedBeanName);
}
  • 比较冗长，顺着往下看即可。
  • 处，创建 AnnotationPropertyValuesAdapter 对象，添加到 `propertyValues` 中。此处，是将注解上的属性，设置到 `propertyValues` 中。也就是说，注解上的属性，自然的能够设置到后续创建的 Service Bean 的对象中。
    • 举个例子，如果说 @Service(version="1.0.0") ，那么这个版本号（version），就可以设置到 Dubbo Service Bean 中去了。
    • 关于 org.apache.dubbo.config.spring.beans.factory.annotation.AnnotationPropertyValuesAdapter 类，就是上述的用途，比较简单，胖友点击 链接 查看即可。
  • <2> 处，调用 #generateServiceBeanName(Service service, Class<?> interfaceClass, String annotatedServiceBeanName) 方法，重新生成 Bean 的名字。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

//
ServiceAnnotationBeanPostProcessor.javaprivate String generateServiceBeanName(Service service, Class<?> interfaceClass, String annotatedServiceBeanName) {
    ServiceBeanNameBuilder builder = ServiceBeanNameBuilder.create(service, interfaceClass, environment);
    return builder.build();
}
//
ServiceBeanNameBuilder.javaprivate static final String SEPARATOR = ":";
private final String interfaceClassName;
private final Environment environment;
//
Optionalprivate String version;
private String group;
//
ServiceBean:${
    interfaceClassName
}
:${
    version
}
:${
    group
}
public String build() {
    StringBuilder beanNameBuilder = new StringBuilder("ServiceBean");
    //
    Required append(beanNameBuilder, interfaceClassName);
    //
    Optional append(beanNameBuilder, version);
    append(beanNameBuilder, group);
    //
    Build String rawBeanName = beanNameBuilder.toString();
    //
    Resolve placeholders return environment.resolvePlaceholders(rawBeanName);
}
private static void append(StringBuilder builder, String value) {
    if (StringUtils.hasText(value)) {
        builder.append(SEPARATOR).append(value);
    }
}

  • 结果示例如下： beanName

  • <3> 处，校验在 scanner 中，是否已经存在 beanName 。若不存在，则进行注册。

整个逻辑，有点长长滴。胖友辛苦上下滑动，在瞅瞅。

5.3 ReferenceAnnotationBeanPostProcessor

org.apache.dubbo.config.spring.beans.factory.annotation.ReferenceAnnotationBeanPostProcessor ，继承 AnnotationInjectedBeanPostProcessor 抽象类，实现 ApplicationContextAware、ApplicationListener 接口，扫描 @Reference 注解的类，创建对应的 Spring BeanDefinition 对象，从而创建 Dubbo Reference Bean 对象。

虽然 org.apache.dubbo.config.spring.beans.factory.annotation.AnnotationInjectedBeanPostProcessor 放在 Dubbo 项目中，但是是 clone 自 https://github.com/alibaba/spring-context-support/blob/1.0.2/src/main/java/com/alibaba/spring/beans/factory/annotation/AnnotationInjectedBeanPostProcessor.java 类。所以呢，我们先不深究这个类，只要知道如下：

  • 英文：Abstract generic {@link BeanPostProcessor} implementation for customized annotation that annotated injected-object.
  • 中文：BeanPostProcessor 的抽象实现类，用于支持使用自定义注解，注入对象的属性。
  • 此时，ReferenceAnnotationBeanPostProcessor 实现的就是 支持 @Reference 注解的属性注入。

相对来说，本节的 ReferenceAnnotationBeanPostProcessor ，会比上一节的 ServiceAnnotationBeanPostProcessor 复杂蛮多~ SO ，保持耐心哈。

5.3.1 构造方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36

//
ReferenceAnnotationBeanPostProcessor.java/** * The bean name of {
    @link
    ReferenceAnnotationBeanPostProcessor
}
*/public static final String BEAN_NAME = "referenceAnnotationBeanPostProcessor";
/** * Cache size */private static final int CACHE_SIZE = Integer.getInteger(BEAN_NAME + ".cache.size", 32);
/** * ReferenceBean 缓存 Map * * KEY：Reference Bean 的名字 */private final ConcurrentMap<String, ReferenceBean<?>> referenceBeanCache = new ConcurrentHashMap<String, ReferenceBean<?>>(CACHE_SIZE);
/** * ReferenceBeanInvocationHandler 缓存 Map * * KEY：Reference Bean 的名字 */private final ConcurrentHashMap<String, ReferenceBeanInvocationHandler> localReferenceBeanInvocationHandlerCache = new ConcurrentHashMap<String, ReferenceBeanInvocationHandler>(CACHE_SIZE);
/** * 使用属性进行注入的
@Reference
Bean 的缓存 Map * * 一般情况下，使用这个 */private final ConcurrentMap<InjectionMetadata.InjectedElement, ReferenceBean<?>> injectedFieldReferenceBeanCache = new ConcurrentHashMap<InjectionMetadata.InjectedElement, ReferenceBean<?>>(CACHE_SIZE);
/** * 使用方法进行注入的
@Reference
Bean 的缓存 Map */private final ConcurrentMap<InjectionMetadata.InjectedElement, ReferenceBean<?>> injectedMethodReferenceBeanCache = new ConcurrentHashMap<InjectionMetadata.InjectedElement, ReferenceBean<?>>(CACHE_SIZE);
private ApplicationContext applicationContext;```

- 具体的每个变量的时候，结合下面来看。

### 5.3.2 doGetInjectedBean

实现 #doGetInjectedBean(Reference reference, Object bean, String beanName, Class<?> injectedType, InjectionMetadata.InjectedElement injectedElement) 方法，获得要注入的 @Reference Bean 。代码如下：

```java
//
ReferenceAnnotationBeanPostProcessor.java
@Overrideprotected
Object doGetInjectedBean(Reference reference, Object bean, String beanName, Class<?> injectedType, InjectionMetadata.InjectedElement injectedElement) throws Exception {
    // <1> 获得
    Reference Bean 的名字 String referencedBeanName = buildReferencedBeanName(reference, injectedType);
    // <2> 创建
    ReferenceBean 对象 ReferenceBean referenceBean = buildReferenceBeanIfAbsent(referencedBeanName, reference, injectedType, getClassLoader());
    // <3> 缓存到 injectedFieldReferenceBeanCache or injectedMethodReferenceBeanCache 中 cacheInjectedReferenceBean(referenceBean, injectedElement); // <4> 创建
    Proxy 代理对象 return buildProxy(referencedBeanName, referenceBean, injectedType);
}
  • <1> 处，调用 #buildReferencedBeanName(Reference reference, Class<?> injectedType) 方法，获得 Reference Bean 的名字。代码如下：
1
2
3
4
5
6
7

//
ReferenceAnnotationBeanPostProcessor.javaprivate String buildReferencedBeanName(Reference reference, Class<?> injectedType) {
    // 创建
    Service Bean 的名字 ServiceBeanNameBuilder builder = ServiceBeanNameBuilder.create(reference, injectedType, getEnvironment());
    return getEnvironment().resolvePlaceholders(builder.build());
    // 这里，貌似重复解析占位符了。不过没啥影响~}

实际上，使用的就是 ServiceBeanNameBuilder 的逻辑，即和 Dubbo Service Bean 的名字，是 同一套。当然，这个也非常合理~

  • <2> 处，调用 #buildReferenceBeanIfAbsent(String referencedBeanName, Reference reference, Class<?> referencedType, ClassLoader classLoader) 方法，创建（获得） ReferenceBean 对象。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13

//
ReferenceAnnotationBeanPostProcessor.javaprivate ReferenceBean buildReferenceBeanIfAbsent(String referencedBeanName, Reference reference, Class<?> referencedType, ClassLoader classLoader)throws Exception {
    // 首先，从 referenceBeanCache 缓存中，获得 referencedBeanName 对应的
    ReferenceBean 对象 ReferenceBean<?> referenceBean = referenceBeanCache.get(referencedBeanName);
    // 然后，如果不存在，则进行创建。然后，添加到 referenceBeanCache 缓存中。 if (referenceBean == null) {
        ReferenceBeanBuilder beanBuilder = ReferenceBeanBuilder .create(reference, classLoader, applicationContext) .interfaceClass(referencedType);
        referenceBean = beanBuilder.build();
        referenceBeanCache.put(referencedBeanName, referenceBean);
    }
    return referenceBean;
}

其中，会使用 ReferenceBeanBuilder 类，构建 ReferenceBean 对象。关于它，我们稍后在 「5.3.4 ReferenceBeanBuilder」 来瞅瞅。实际上，和上面 ServiceBean 的构建，也差不了太多。

  • <3> 处，调用 #cacheInjectedReferenceBean(String referencedBeanName, Reference reference, Class<?> referencedType, ClassLoader classLoader) 方法，缓存到 injectedFieldReferenceBeanCache or injectedMethodReferenceBeanCache 中。代码如下：
1
2
3
4
5
6
7
8
9
10
11

//
ReferenceAnnotationBeanPostProcessor.javaprivate void cacheInjectedReferenceBean(ReferenceBean referenceBean, InjectionMetadata.InjectedElement injectedElement) {
    if (injectedElement.getMember() instanceof Field) {
        injectedFieldReferenceBeanCache.put(injectedElement, referenceBean);
    }
    else if (injectedElement.getMember() instanceof Method) {
        injectedMethodReferenceBeanCache.put(injectedElement, referenceBean);
    }
}
  • <4> 处，调用 #buildProxy(String referencedBeanName, ReferenceBean referenceBean, Class<?> injectedType) 方法，创建 Proxy 代理对象。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

// ReferenceAnnotationBeanPostProcessor.java

private Object buildProxy(String referencedBeanName, ReferenceBean referenceBean, Class<?> injectedType) {
    InvocationHandler handler = buildInvocationHandler(referencedBeanName, referenceBean);
    return Proxy.newProxyInstance(getClassLoader(), new Class[]{injectedType}, handler);
}

private InvocationHandler buildInvocationHandler(String referencedBeanName, ReferenceBean referenceBean) {
    // 首先，从 localReferenceBeanInvocationHandlerCache 缓存中，获得 ReferenceBeanInvocationHandler 对象
    ReferenceBeanInvocationHandler handler = localReferenceBeanInvocationHandlerCache.get(referencedBeanName);
    // 然后，如果不存在，则创建 ReferenceBeanInvocationHandler 对象
    if (handler == null) {
        handler = new ReferenceBeanInvocationHandler(referenceBean);
    }

    // <X> 之后，根据引用的 Dubbo 服务是远程的还是本地的，做不同的处理。
    // 【本地】判断如果 applicationContext 中已经初始化，说明是本地的 @Service Bean ，则添加到 localReferenceBeanInvocationHandlerCache 缓存中。
    // 等到本地的 @Service Bean 暴露后，再进行初始化。
    if (applicationContext.containsBean(referencedBeanName)) { // Is local @Service Bean or not ?
        // ReferenceBeanInvocationHandler's initialization has to wait for current local @Service Bean has been exported.
        localReferenceBeanInvocationHandlerCache.put(referencedBeanName, handler);
    // 【远程】判断若果 applicationContext 中未初始化，说明是远程的 @Service Bean 对象，则立即进行初始化
    } else {
        // Remote Reference Bean should initialize immediately
        handler.init();
    }
    return handler;
}
  • 比较复杂的是， 处，根据引用的 Dubbo 服务是远程的还是本地的，做不同的处理。为什么呢？
    • 远程的 Dubbo 服务，理论来说（不考虑对方挂掉的情况），是已经存在，此时可以进行加载引用。
    • 本地的 Dubbo 服务，此时并未暴露，则先添加到 localReferenceBeanInvocationHandlerCache 中进行缓存。等后续的，通过 Spring 事件监听的功能，进行实现。详细的，我们在 「5.3.3 onApplicationEvent」 中会看到。
  • ReferenceBeanInvocationHandler ，是 ReferenceAnnotationBeanPostProcessor 的内部静态类，实现 Dubbo InvocationHandler 接口，代码如下： ```
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57

//
ReferenceAnnotationBeanPostProcessor#ReferenceBeanInvocationHandler.javaprivate static class ReferenceBeanInvocationHandler implements InvocationHandler {
    /** * ReferenceBean 对象 */ private final ReferenceBean referenceBean;
    /** * Bean 对象 */ private Object bean;
    private ReferenceBeanInvocationHandler(ReferenceBean referenceBean) {
        this.referenceBean = referenceBean;
    }
    @Override
    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
        // 调用 bean 的对应的方法 return method.invoke(bean, args); } // 通过初始化方法，可以获得 `ReferenceBean.ref` private void init()
        {
            this.bean = referenceBean.get();
        }
    }


* 重心在于 `#init()` 方法，可以调用 `ReferenceBean#get()` 方法，进行引用的 Bean 的初始化，最后返回引用 `ref` 。

### 5.3.3 onApplicationEvent

实现 #onApplicationEvent(ApplicationEvent event) 方法，代码如下：

```java
//
ReferenceAnnotationBeanPostProcessor.java
@Overridepublic
void onApplicationEvent(ApplicationEvent event) {
    if (event instanceof ServiceBeanExportedEvent) {
        onServiceBeanExportEvent((ServiceBeanExportedEvent) event);
    }
    else if (event instanceof ContextRefreshedEvent) {
        onContextRefreshedEvent((ContextRefreshedEvent) event);
    }
}
private void onServiceBeanExportEvent(ServiceBeanExportedEvent event) {
    // 获得
    ServiceBean 对象 ServiceBean serviceBean = event.getServiceBean();
    // 初始化对应的
    ReferenceBeanInvocationHandler initReferenceBeanInvocationHandler(serviceBean);
}
private void initReferenceBeanInvocationHandler(ServiceBean serviceBean) {
    String serviceBeanName = serviceBean.getBeanName();
    //
    Remove ServiceBean when it's exported
    // 从 localReferenceBeanInvocationHandlerCache 缓存中，移除
    ReferenceBeanInvocationHandler handler = localReferenceBeanInvocationHandlerCache.remove(serviceBeanName);
    //
    Initialize
    // 执行初始化 if (handler != null)
    {
        handler.init();
    }}private void onContextRefreshedEvent(ContextRefreshedEvent event)
    {
    }
}
  • 重点在于处理 ServiceBeanExportedEvent 事件。处理时，如果判断 「5.2.2 doGetInjectedBean」 localReferenceBeanInvocationHandlerCache 中存在 ReferenceBeanInvocationHandler 对象，说明有它未初始化。后续，调用 ReferenceBeanInvocationHandler#init() 方法，从而完成。这块，胖友结合 一起，是不是就明白了。
  • 在 ServiceBean 暴露服务完成后，会发布 ServiceBeanExportedEvent 事件。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18

//
ServiceBean.javaprivate ApplicationEventPublisher applicationEventPublisher;
/** *
@since
2.6.5 */
@Overridepublic
void export() {
    // 暴露服务 super.export(); //
    Publish ServiceBeanExportedEvent
    // 发布事件 publishExportEvent();}/** * @since 2.6.5 */private void publishExportEvent()
    {
        // 创;
    }
    // 创建
    ServiceBeanExportedEvent 对象 ServiceBeanExportedEvent exportEvent = new ServiceBeanExportedEvent(this);
    // 发布事件 applicationEventPublisher.publishEvent(exportEvent);}
  • org.apache.dubbo.config.spring.context.event.ServiceBeanExportedEvent ，Service Bean 暴露完成事件。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43

//
BeanExportedEvent.java/** * A {
    @link
    ApplicationEvent
}
after {
    @link
    ServiceBean
}
{
    @link
    ServiceBean#export() export
}
invocation * *
@see
ApplicationEvent *
@see
ApplicationListener *
@see
ServiceBean *
@since
2.6.5 */public class ServiceBeanExportedEvent extends ApplicationEvent {
    /** * Create a new ApplicationEvent. * *
    @param
    serviceBean {
        @link
        ServiceBean
    }
    bean */ public ServiceBeanExportedEvent(ServiceBean serviceBean) {
        super(serviceBean);
    }
    /** * Get {
        @link
        ServiceBean
    }
    instance * *
    @return
    non-null */ public ServiceBean getServiceBean() {
        return (ServiceBean) super.getSource();
    }
}

5.3.4 ReferenceBeanBuilder

org.apache.dubbo.config.spring.beans.factory.annotation.ReferenceBeanBuilder ，继承 AbstractAnnotationConfigBeanBuilder 抽象类，ReferenceBean 的构建器。

考虑到 ReferenceBeanBuilder 类，就是 #build() 方法，我们就直接结合 AbstractAnnotationConfigBeanBuilder 抽象类，一起写了。

5.3.4.1 构造方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

//
AbstractAnnotationConfigBeanBuilder.javaabstract class AbstractAnnotationConfigBeanBuilder<A extends Annotation, B extends AbstractInterfaceConfig> {
    /** * 注解 */ protected final A annotation;
    protected final ApplicationContext applicationContext;
    protected final ClassLoader classLoader;
    /** * Bean 对象 */ protected Object bean;
    /** * 接口 */ protected Class<?> interfaceClass;
    protected AbstractAnnotationConfigBeanBuilder(A annotation, ClassLoader classLoader, ApplicationContext applicationContext) {
        Assert.notNull(annotation, "The Annotation must not be null!");
        Assert.notNull(classLoader, "The ClassLoader must not be null!");
        Assert.notNull(applicationContext, "The ApplicationContext must not be null!");
        this.annotation = annotation;
        this.applicationContext = applicationContext;
        this.classLoader = classLoader;
    }
}
//
ReferenceBeanBuilder.javaclass ReferenceBeanBuilder extends AbstractAnnotationConfigBeanBuilder<Reference, ReferenceBean> {
    private ReferenceBeanBuilder(Reference annotation, ClassLoader classLoader, ApplicationContext applicationContext) {
        super(annotation, classLoader, applicationContext);
    }
    public static ReferenceBeanBuilder create(Reference annotation, ClassLoader classLoader, ApplicationContext applicationContext) {
        return new ReferenceBeanBuilder(annotation, classLoader, applicationContext);
    }
}
  • 其中，泛型 A 对应 @Reference 注解，泛型 B 对应 ReferenceBean 类。

5.3.4.2 build

#build() 方法，构造泛型 B 对象。此处，就是构造 ReferenceBean 对象。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67

//
AbstractAnnotationConfigBeanBuilder.javapublic final B build() throws Exception {
    // 校验依赖 checkDependencies(); // 执行构造
    Bean 对象 B bean = doBuild();
    // 配置
    Bean 对象 configureBean(bean);
    if (logger.isInfoEnabled()) {
        logger.info("The bean[type:" + bean.getClass().getSimpleName() + "] has been built.");
    }
    return bean;
}
private void checkDependencies() {
}
/** * Builds {
    @link
    B Bean
}
* *
@return
{
    @link
    B Bean
}
*/protected abstract B doBuild();
protected void configureBean(B bean) throws Exception {
    // 前置配置 preConfigureBean(annotation, bean); // 配置
    RegistryConfig 属性 configureRegistryConfigs(bean);
    // 配置
    MonitorConfig 属性 configureMonitorConfig(bean);
    // 配置
    ApplicationConfig 属性 configureApplicationConfig(bean);
    // 配置
    ModuleConfig 属性 configureModuleConfig(bean);
    // 后置配置 postConfigureBean(annotation, bean);}protected abstract void preConfigureBean(A annotation,
    B bean) throws Exception;
    // 抽象方法private void configureRegistryConfigs(B bean) {
        String[] registryConfigBeanIds = resolveRegistryConfigBeanNames(annotation);
        List<RegistryConfig> registryConfigs = BeanFactoryUtils.getBeans(applicationContext, registryConfigBeanIds, RegistryConfig.class);
        bean.setRegistries(registryConfigs);
    }
    private void configureMonitorConfig(B bean) {
        String monitorBeanName = resolveMonitorConfigBeanName(annotation);
        MonitorConfig monitorConfig = BeanFactoryUtils.getOptionalBean(applicationContext, monitorBeanName, MonitorConfig.class);
        bean.setMonitor(monitorConfig);
    }
    private void configureApplicationConfig(B bean) {
        String applicationConfigBeanName = resolveApplicationConfigBeanName(annotation);
        ApplicationConfig applicationConfig = BeanFactoryUtils.getOptionalBean(applicationContext, applicationConfigBeanName, ApplicationConfig.class);
        bean.setApplication(applicationConfig);
    }
    private void configureModuleConfig(B bean) {
        String moduleConfigBeanName = resolveModuleConfigBeanName(annotation);
        ModuleConfig moduleConfig = BeanFactoryUtils.getOptionalBean(applicationContext, moduleConfigBeanName, ModuleConfig.class);
        bean.setModule(moduleConfig);
    }
    protected abstract String resolveModuleConfigBeanName(A annotation);
    // 抽象方法protected abstract
    String resolveApplicationConfigBeanName(A annotation);
    // 抽象方法protected abstract
    String[] resolveRegistryConfigBeanNames(A annotation);
    // 抽象方法protected abstract
    String resolveMonitorConfigBeanName(A annotation);
    // 抽象方法protected abstract void postConfigureBean(A annotation,
    B bean) throws Exception;
    // 抽象方法
  • ReferenceBeanBuilder 主要对上面的抽象方法，进行具体实现。代码如下：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96

//
ReferenceBeanBuilder.javastatic final String[] IGNORE_FIELD_NAMES = of("application", "module", "consumer", "monitor", "registry")
@Overrideprotected
ReferenceBean doBuild() {
    // 创建
    ReferenceBean 对象 return new ReferenceBean<>();
}
@SuppressWarnings("Duplicates")
@Overrideprotected
void preConfigureBean(Reference reference, ReferenceBean referenceBean) {
    Assert.notNull(interfaceClass, "The interface class must set first!");
    // 创建
    DataBinder 对象 DataBinder dataBinder = new DataBinder(referenceBean);
    //
    Register CustomEditors for special fields
    // 注册指定属性的自定义
    Editor dataBinder.registerCustomEditor(String.class, "filter", new StringTrimmerEditor(true));
    dataBinder.registerCustomEditor(String.class, "listener", new StringTrimmerEditor(true));
    dataBinder.registerCustomEditor(Map.class, "parameters", new PropertyEditorSupport() {
        @Override
        public void setAsText(String text) throws java.lang.IllegalArgumentException {
            //
            Trim all whitespace String content = StringUtils.trimAllWhitespace(text);
            if (!StringUtils.hasText(content)) {
                //
                No content , ignore directly return;
            }
            // replace "=" to "," content =
            StringUtils.replace(content, "=", ",");
            // replace ":" to "," content =
            StringUtils.replace(content, ":", ",");
            //
            String[] to Map Map<String, String> parameters = CollectionUtils.toStringMap(commaDelimitedListToStringArray(content));
            setValue(parameters);
        }
    }
    );
    //
    Bind annotation attributes
    // 将注解的属性，设置到 reference 中 dataBinder.bind(new
    AnnotationPropertyValuesAdapter(reference, applicationContext.getEnvironment(), IGNORE_FIELD_NAMES));
}
@Overrideprotected
String resolveModuleConfigBeanName(Reference annotation) {
    return annotation.module();
}
@Overrideprotected
String resolveApplicationConfigBeanName(Reference annotation) {
    return annotation.application();
}
@Overrideprotected
String[] resolveRegistryConfigBeanNames(Reference annotation) {
    return annotation.registry();
}
@Overrideprotected
String resolveMonitorConfigBeanName(Reference annotation) {
    return annotation.monitor();
}
@Overrideprotected
void postConfigureBean(Reference annotation, ReferenceBean bean) throws Exception {
    // 设置 applicationContext bean.setApplicationContext(applicationContext);
    // 配置 interfaceClass configureInterface(annotation, bean);
    // 配置
    ConsumerConfig configureConsumerConfig(annotation, bean);
    // 执行
    Bean 后置属性初始化 bean.afterPropertiesSet();
}
@SuppressWarnings("Duplicates")
private void configureInterface(Reference reference, ReferenceBean referenceBean) {
    // 首先，从 @Reference 获得 interfaceName 属性，从而获得 interfaceClass 类
    Class<?> interfaceClass = reference.interfaceClass();
    if (void.class.equals(interfaceClass)) {
        interfaceClass = null;
        String interfaceClassName = reference.interfaceName();
        if (StringUtils.hasText(interfaceClassName)) {
            if (ClassUtils.isPresent(interfaceClassName, classLoader)) {
                interfaceClass = ClassUtils.resolveClassName(interfaceClassName, classLoader);
            }
        }
    }
    // 如果获得不到，则使用 interfaceClass 即可 if (interfaceClass == null)
    {
        interfaceClass = this.interfaceClass;
    }
    Assert.isTrue(interfaceClass.isInterface(), "The class of field or method that was annotated
    @Reference
    is not an interface!");
    referenceBean.setInterface(interfaceClass);
}
private void configureConsumerConfig(Reference reference, ReferenceBean<?> referenceBean) {
    // 获得
    ConsumerConfig 对象 String consumerBeanName = reference.consumer();
    ConsumerConfig consumerConfig = getOptionalBean(applicationContext, consumerBeanName, ConsumerConfig.class);
    // 设置到 referenceBean 中 referenceBean.setConsumer(consumerConfig);}

~

写的相对简略。胖友注意看每一个的注释哈~

5.3.5 destroy

实现 #destroy() 方法，执行销毁逻辑。代码如下：

1
2
3
4
5
6
7
8
9
10
11
12

//
ReferenceAnnotationBeanPostProcessor.java
@Overridepublic
void destroy() throws Exception {
    // 父类销毁 super.destroy();
    // 清空缓存 this.referenceBeanCache.clear();
    this.localReferenceBeanInvocationHandlerCache.clear();
    this.injectedFieldReferenceBeanCache.clear();
    this.injectedMethodReferenceBeanCache.clear();
}

666. 彩蛋

比想象中的长特别特别特别多~这个还是有一些地方写的比较简略的。

本文的源码解析，对应仓库为 https://github.com/YunaiV/dubbo/tree/master-2.7.1 。

熬夜快乐~

Dubbo
Dubbo
本文由作者按照 CC BY 4.0 进行授权
