Zookeeper 客户端
本文基于 Dubbo 2.6.1 版本，望知悉。
1. 概述
在 dubbo-remoting-zookeeper 模块，实现了 Dubbo 对 Zookeeper 客户端的封装。在该模块中，抽象了通用的 Zookeeper Client API 接口，实现了两种 Zookeeper Client 库的接入：
- 基于 Apache Curator 实现。
```plain text plain
1
2
3
4
5
6
7
8
---
- 基于 [ZkClient](https://github.com/sgroschupf/zkclient)
实现。
```plain text
plain <dubbo:registry address="zookeeper://127.0.0.1:2181" client="zkclient" />
默认不配置 client 的情况下，使用 Curator 。

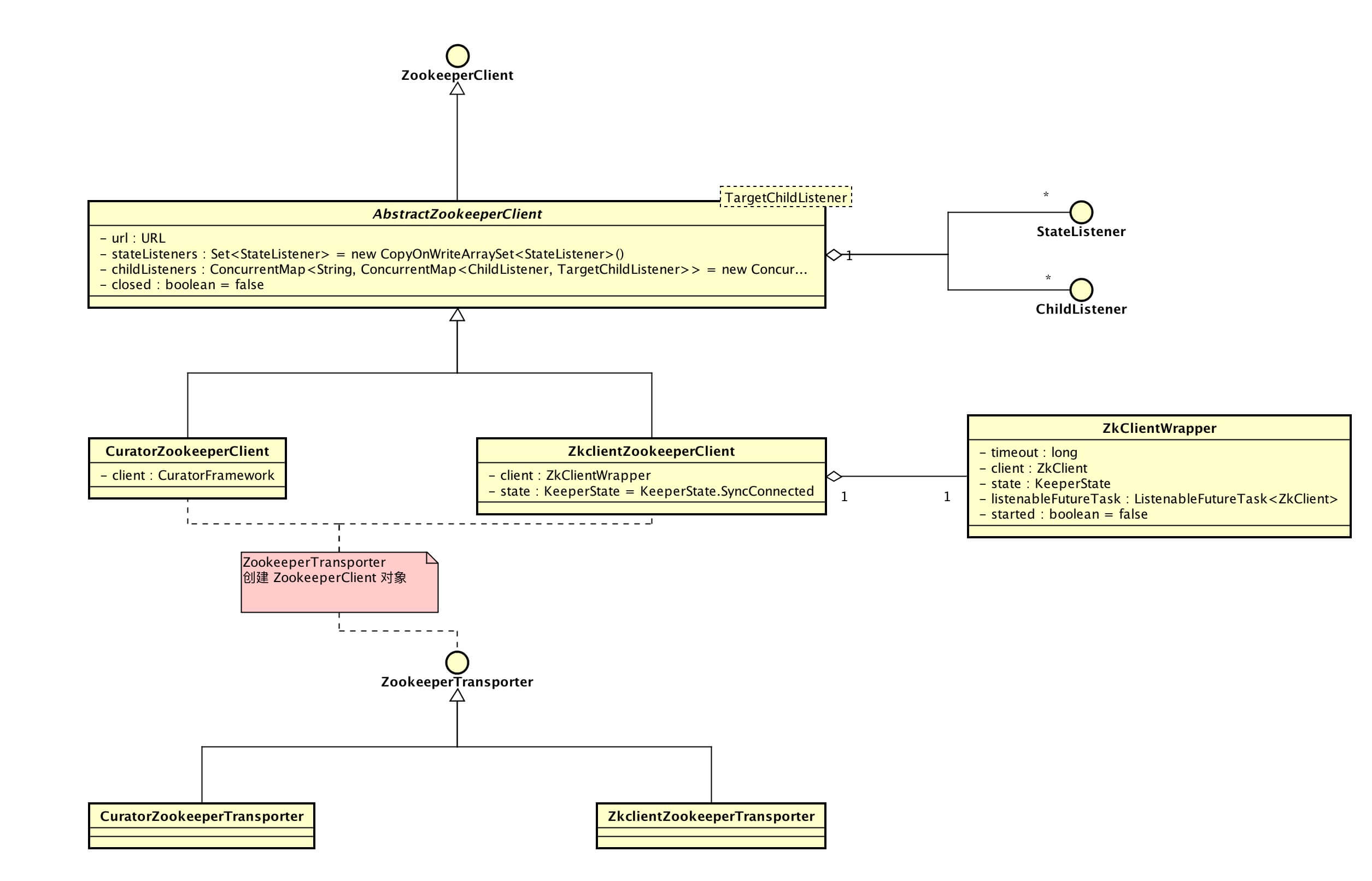

dubbo-remoting-zookeeper 的整体类图如下：
类图
下面，我们按照接口到实现的顺序，往下看。
2. 接口
2.1 StateListener
com.alibaba.dubbo.remoting.zookeeper.StateListener ，状态监听器接口，代码如下：
```plain text plain public interface StateListener { /** * 状态 - 已断开 */ int DISCONNECTED = 0; /** * 状态 - 已连接 */ int CONNECTED = 1; /** * 状态 - 已重连 */ int RECONNECTED = 2; /** * 状态变更回调 * * @param connected 状态 */ void stateChanged(int connected); }
1
2
3
4
5
6
7
8
9
---
## 2.2 ChildListener
com.alibaba.dubbo.remoting.zookeeper.StateListener ，节点监听器接口，代码如下：
```plain text
plain public interface ChildListener { /** * 子节点发生变化的回调 * * @param path 节点 * @param children 最新的子节点列表 */ void childChanged(String path, List<String> children); }
2.3 ZookeeperClient
com.alibaba.dubbo.remoting.zookeeper.ZookeeperClient ，Zookeeper 客户端接口，代码如下：
```plain text plain public interface ZookeeperClient { /** * 创建节点 * * @param path 节点路径 * @param ephemeral 是否临时节点 */ void create(String path, boolean ephemeral); /** * 删除节点 * * @param path 节点路径 */ void delete(String path); List
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
---
- 状态相关方法
- #isConnected()
- #close()
- #getUrl()
- 数据相关方法
- #create(path, ephemeral)
- #getChildren(path)
- 从 API 上，Dubbo 只使用节点的路径，而不使用节点的值（内容）。
- 监听相关方法
- #addChildListener(path, listener)
- #removeChildListener(path, listener)
- #addStateListener(listener)
- #removeStateListener(listener)
## 2.4 AbstractZookeeperClient
com.alibaba.dubbo.remoting.zookeeper.support.AbstractZookeeperClient ，实现 ZookeeperClient 接口，Zookeeper 客户端**抽象类**，实现通用的逻辑。
### 2.4.1 属性
```plain text
plain public abstract class AbstractZookeeperClient<TargetChildListener> implements ZookeeperClient { /** * 注册中心 URL */ private final URL url; /** * StateListener 集合 */ private final Set<StateListener> stateListeners = new CopyOnWriteArraySet<StateListener>(); /** * ChildListener 集合 * * key1：节点路径 * key2：ChildListener 对象 * value ：监听器具体对象。不同 Zookeeper 客户端，实现会不同。 */ private final ConcurrentMap<String, ConcurrentMap<ChildListener, TargetChildListener>> childListeners = new ConcurrentHashMap<String, ConcurrentMap<ChildListener, TargetChildListener>>(); /** * 是否关闭 */ private volatile boolean closed = false; public AbstractZookeeperClient(URL url) { this.url = url; } @Override public URL getUrl() { return url; } // ... 省略其他方法 }
见代码注释。
2.4.2 create
```plain text plain @Override public void create(String path, boolean ephemeral) { // 循环创建父路径 int i = path.lastIndexOf(‘/’); if (i > 0) { String parentPath = path.substring(0, i); if (!checkExists(parentPath)) { create(parentPath, false); } } // 创建临时节点 if (ephemeral) { createEphemeral(path); // 创建持久节点 } else { createPersistent(path); } }
1
2
3
4
5
6
7
8
---
- #checkExists(path)**抽象**
方法，节点是否存在。代码如下：
```plain text
plain protected abstract boolean checkExists(String path);
- #createEphemeral(path)抽象 方法，创建临时节点。代码如下：
```plain text plain protected abstract void createPersistent(String path);
1
2
3
4
5
6
7
8
---
- #createPersistent(path)**抽象**
方法，创建持久节点。代码如下：
```plain text
plain protected abstract void createEphemeral(String path);
2.4.3 StateListener 相关方法
```plain text plain @Override public void addStateListener(StateListener listener) { stateListeners.add(listener); } @Override public void removeStateListener(StateListener listener) { stateListeners.remove(listener); } public Set
1
2
3
4
5
6
7
---
### 2.4.4 ChildListener 相关方法
```plain text
plain @Override public List<String> addChildListener(String path, final ChildListener listener) { // 获得路径下的监听器数组 ConcurrentMap<ChildListener, TargetChildListener> listeners = childListeners.get(path); if (listeners == null) { childListeners.putIfAbsent(path, new ConcurrentHashMap<ChildListener, TargetChildListener>()); listeners = childListeners.get(path); } // 获得是否已经有该监听器 TargetChildListener targetListener = listeners.get(listener); // 监听器不存在，进行创建 if (targetListener == null) { listeners.putIfAbsent(listener, createTargetChildListener(path, listener)); targetListener = listeners.get(listener); } // 向 Zookeeper ，真正发起订阅 return addTargetChildListener(path, targetListener); } @Override public void removeChildListener(String path, ChildListener listener) { ConcurrentMap<ChildListener, TargetChildListener> listeners = childListeners.get(path); if (listeners != null) { TargetChildListener targetListener = listeners.remove(listener); if (targetListener != null) { // 向 Zookeeper ，真正发起取消订阅 removeTargetChildListener(path, targetListener); } } }
- #createTargetChildListener(path, listener)抽象 方法，创建真正的 ChildListener 对象。因为，每个 Zookeeper 的库，实现不同。代码如下：
```plain text plain protected abstract TargetChildListener createTargetChildListener(String path, ChildListener listener);
1
2
3
4
5
6
7
8
---
- #addTargetChildListener(path, targetListener)**抽象**
方法，向 Zookeeper ，真正发起订阅。代码如下：
```plain text
plain protected abstract List<String> addTargetChildListener(String path, TargetChildListener listener);
- #removeTargetChildListener(path, targetListener)抽象 方法，向 Zookeeper ，真正发起取消订阅。代码如下：
```plain text plain protected abstract void removeTargetChildListener(String path, TargetChildListener listener);
1
2
3
4
5
6
7
---
### 2.4.5 close
```plain text
plain @Override public void close() { if (closed) { return; } closed = true; try { doClose(); } catch (Throwable t) { logger.warn(t.getMessage(), t); } }
- #doClose()抽象 方法，关闭 Zookeeper 连接。代码如下：
```plain text plain protected abstract void doClose();
1
2
3
4
5
6
7
8
9
---
## 2.5 ZookeeperTransporter
com.alibaba.dubbo.remoting.zookeeper.ZookeeperTransporter ，Zookeeper 工厂接口，代码如下：
```plain text
plain @SPI("curator") public interface ZookeeperTransporter { /** * 连接创建 ZookeeperClient 对象 * * @param url 注册中心地址 * @return ZookeeperClient 对象 */ @Adaptive({Constants.CLIENT_KEY, Constants.TRANSPORTER_KEY}) ZookeeperClient connect(URL url); }
- #connect(url) 方法，连接创建 ZookeeperClient 对象。
- @SPI(“curator”) 注解，使用 Dubbo SPI 机制，默认使用 Curator 实现。
- @Adaptive({Constants.CLIENT_KEY, Constants.TRANSPORTER_KEY}) 注解，使用 Dubbo SPI Adaptive 机制，根据 url 参数，加载对应的 ZookeeperTransporter 拓展实现类。
3. 基于 Curator 实现
Apache Curator ，作为 Zookeeper 客户端的库，基本是最佳的选择，在 Sharding-JDBC、Elastic-Job 等等中间都选择了 Curator 连接 Zookeeper 。
友情提示，如果对 Curator 的 API 不熟悉的胖友，推荐看下官方文档，进行下学习。本文不会写 Curator 使用方法。
3.1 CuratorZookeeperClient
com.alibaba.dubbo.remoting.zookeeper.curator.CuratorZookeeperClient ，实现 ZookeeperTransporter 抽象类，基于 Curator 的 Zookeeper 客户端实现类。
3.1.1 属性
```plain text plain /** * client 对象 */ private final CuratorFramework client; public CuratorZookeeperClient(URL url) { super(url); try { // 创建 client 对象 CuratorFrameworkFactory.Builder builder = CuratorFrameworkFactory.builder() .connectString(url.getBackupAddress()) // 连接地址 .retryPolicy(new RetryNTimes(1, 1000)) // 重试策略，1 次，间隔 1000 ms .connectionTimeoutMs(5000); // 连接超时时间 String authority = url.getAuthority(); if (authority != null && authority.length() > 0) { builder = builder.authorization(“digest”, authority.getBytes()); } client = builder.build(); // 添加连接监听器 client.getConnectionStateListenable().addListener(new ConnectionStateListener() { public void stateChanged(CuratorFramework client, ConnectionState state) { if (state == ConnectionState.LOST) { CuratorZookeeperClient.this.stateChanged(StateListener.DISCONNECTED); } else if (state == ConnectionState.CONNECTED) { CuratorZookeeperClient.this.stateChanged(StateListener.CONNECTED); } else if (state == ConnectionState.RECONNECTED) { CuratorZookeeperClient.this.stateChanged(StateListener.RECONNECTED); } } }); // 启动 client client.start(); } catch (Exception e) { throw new IllegalStateException(e.getMessage(), e); } }
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
---
- 在连接状态发生变化时，调用
#stateChange(state)
方法，进行 StateListener 的回调。
### 3.1.2 create 相关方法
- [#createPersistent(path)](https://github.com/YunaiV/dubbo/blob/414a4799cef08f0b5263d838eeaf8d8f169f2cdc/dubbo-remoting/dubbo-remoting-zookeeper/src/main/java/com/alibaba/dubbo/remoting/zookeeper/curator/CuratorZookeeperClient.java#L72-L79)
- [#createEphemeral(path)](https://github.com/YunaiV/dubbo/blob/414a4799cef08f0b5263d838eeaf8d8f169f2cdc/dubbo-remoting/dubbo-remoting-zookeeper/src/main/java/com/alibaba/dubbo/remoting/zookeeper/curator/CuratorZookeeperClient.java#L81-L88)
- [#checkExists(path)](https://github.com/YunaiV/dubbo/blob/414a4799cef08f0b5263d838eeaf8d8f169f2cdc/dubbo-remoting/dubbo-remoting-zookeeper/src/main/java/com/alibaba/dubbo/remoting/zookeeper/curator/CuratorZookeeperClient.java#L109-L117)
### 3.1.3 ChildListener 相关方法
```plain text
plain public CuratorWatcher createTargetChildListener(String path, ChildListener listener) { return new CuratorWatcherImpl(listener); } public List<String> addTargetChildListener(String path, CuratorWatcher listener) { try { return client.getChildren().usingWatcher(listener).forPath(path); } catch (NoNodeException e) { return null; } catch (Exception e) { throw new IllegalStateException(e.getMessage(), e); } } public void removeTargetChildListener(String path, CuratorWatcher listener) { ((CuratorWatcherImpl) listener).unwatch(); } private class CuratorWatcherImpl implements CuratorWatcher { private volatile ChildListener listener; public CuratorWatcherImpl(ChildListener listener) { this.listener = listener; } public void unwatch() { this.listener = null; } @Override public void process(WatchedEvent event) throws Exception { if (listener != null) { String path = event.getPath() == null ? "" : event.getPath(); listener.childChanged(path, // if path is null, curator using watcher will throw NullPointerException. // if client connect or disconnect to server, zookeeper will queue // watched event(Watcher.Event.EventType.None, .., path = null). StringUtils.isNotEmpty(path) ? client.getChildren().usingWatcher(this).forPath(path) // 重新发起连接，并传入最新的子节点列表 : Collections.<String>emptyList()); // } } }
3.1.4 close 相关方法
3.1.5 delete
```plain text plain @Override public void delete(String path) { try { client.delete().forPath(path); } catch (NoNodeException e) { } catch (Exception e) { throw new IllegalStateException(e.getMessage(), e); } }
1
2
3
4
5
6
7
8
9
---
无法通用，所以子类实现。
### 3.1.6 getChildren
```plain text
plain @Override public List<String> getChildren(String path) { try { return client.getChildren().forPath(path); } catch (NoNodeException e) { return null; } catch (Exception e) { throw new IllegalStateException(e.getMessage(), e); } }
3.2 CuratorZookeeperTransporter
com.alibaba.dubbo.remoting.zookeeper.curator.CuratorZookeeperTransporter ，实现 ZookeeperTransporter 接口，CuratorZookeeper 工厂实现类。
plain text plain public class CuratorZookeeperTransporter implements ZookeeperTransporter { public ZookeeperClient connect(URL url) { return new CuratorZookeeperClient(url); } }
4. 基于 ZkClient 实现
基于 ZkClient 的实现，本文仅列出标题。感兴趣的胖友，可以自己去看。
当然，良心如笔者，已经添加了中文注释。
4.1 ZkclientZookeeperClient
com.alibaba.dubbo.remoting.zookeeper.zkclient.ZkclientZookeeperClient
4.1.1 ZkClientWrapper
com.alibaba.dubbo.remoting.zookeeper.zkclient.ZkClientWrapper
4.2 ZkclientZookeeperTransporter
com.alibaba.dubbo.remoting.zookeeper.zkclient.ZkclientZookeeperTransporter
666. 彩蛋
知识星球
小文一篇。
发现，即使很简单的文章，例如本文，也要写 3 小时左右。
